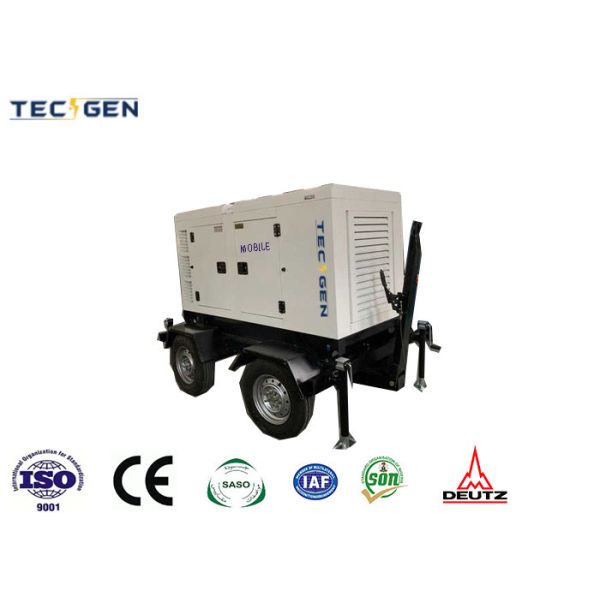

60kVA Mobile trailer generator 48kW mobile genset with 4 wheels for easy movable operation
Product Description: 60kVA Mobile Trailer Generator - Your Reliable Mobile Genset Solution
Standard Features:
Introducing our flagship 60kVA Mobile Trailer Generator, designed for ultimate reliability and portability. Equipped with a robust BF4M2012 DEUTZ engine and a high-performance TAL-A42-H Leroy Somer alternator, this mobile genset delivers a rated output of 60kVA/48kW and a standby capacity of 66kVA/53kW, ensuring uninterrupted power supply for various applications. The DEIF SGC-420 controller ensures precise voltage and frequency regulation, maintaining ±1% and ±0.5% respectively, for stable and clean power output.
Key Features:
- Powerful Engine: The BF4M2012 DEUTZ engine, a 4-cylinder inline powerhouse, boasts a turbocharged system and electric speed governor, delivering 54kW at 1500 RPM for rated output and 60kW for standby, with low fuel consumption.
- Efficient Alternator: The TAL-A42-H Leroy Somer alternator, featuring brushless self-excited control and Class H insulation, ensures seamless power conversion with a voltage regulation rate of ±1%.
- Quiet Operation: With a noise level of just 70dB(A) at 7 meters, this generator is ideal for noise-sensitive environments, making it the perfect choice for construction sites, outdoor events, and emergency backup.
- Easy Mobility: Mounted on a sturdy trailer, the 60kVA Mobile Trailer Generator is designed for hassle-free transportation and quick deployment.
60kVA Mobile Trailer Generator General Datasheets:
| 60kVA Mobile Trailer Generator Specifications |
| Model | Engine | Alternator | Controller | Output |
| TG66DEST | BF4M2012 | TAL-A42-H | DEIF SGC-420 | 60kVA |
| Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts |
| General Date of 60kVA Mobile Trailer Generator |
| Genset Type | Silent & Mobile Type |
| Engine Model | BF4M2012 DEUTZ |
| Alternator Mode | TAL-A42-H Leroy Somer |
| Rated Output | 60kVA / 48kW |
| Standby Output | 66kVA / 53kW |
| Rated Speed | 1500 RPM |
| Frequency | 50 HZ |
| Rated Voltage | 240 / 415V |
| Rated Current | 83.5A |
| Breaker | 100A Aisikai Breaker |
| ATS | 100A Built-in ATS |
| Power Factor | 0.8 |
| Genset Phase | 3 phase, 4 – wire connection |
| Fuel Tank | 8 running hours |
| Noise level dB(A) @7m | 70dB(A) |
| Net Weight | 1650KGS |
| Genset size | L3100 * W1650 * H1800mm |
| Voltage regulation rate | ≤±1% |
| Random voltage variation | ≤±1% |
| Frequency regulation rate | ≤±5% |
| Random frequency variation | ≤±0.5% |
| General specification of Engine for 60kVA Mobile Trailer Generator |
| Manufacture | DEUTZ JIEFANG |
| Model | BF4M2012 |
| Rated Output/Speed | 54KW/1500RPM |
| Standby Output/Speed | 60KW/1500RPM |
| Aspiration | Turbocharged |
| Speed Governor | Electric |
| Engine Type | 4 cylinders in line |
| Bore X Stroke | 101*121mm |
| Displacement | 4.04 L |
| Compression ratio | 18.4:1 |
| Cooling system | Forced Water Cooling Cycle |
| Rated speed | 1500rpm |
| Fuel Consumption/rated output | 16.9 L / h |
| Fuel Consumption/standby output | 17.8 L / h |
| Starter motor | D.C. 24V Electric starting |
| Alternator (Dynamo) | AC24V |
| General data of Alternator for 60kVA Mobile Trailer Generator |
| Alternator Model | TAL-A42-H |
| Manufacture | Leroy Somer |
| Rate Output | 50kW |
| Rated voltage(V) | 220 / 380V |
| Voltage regulation | AVR ± 1.0 % |
| Working Altitude | ≤1000 |
| Control System | Brushless Self Excited |
| Bearing | Single Bearing |
| Insulation System | Class H |
| Protection | IP23 |
| Power factor | 0.8 |
| Winding connection | 3 phase, 4 – wire connection |
| Standard configuration of 60kVA Mobile Trailer Generator |
| Aluminum water tank | 50℃ |
| Controller Panel | DEIF SGC-420 |
| Battery | Varta Maintenance free Battery |
| Silencer | Included |
| Dry type air filter, fuel filter, oil filter |
| 24V D.C automatic battery charger |
| Max. 50 degree celsius radiator |
| Batteries, rack and cable |
| Ripple flex exhaust pipe, flange and muffler |
Usage:
Our 60kVA Mobile Trailer Generator is ideal for a wide range of applications requiring portable power solutions. From powering remote construction sites, hospitals, and data centers during outages, to supporting large-scale outdoor events and exhibitions, this genset is the ultimate go-to solution for reliable backup power.
Advantages:
- Durability: Built with high-quality components, our generator is designed for long-lasting performance and minimal maintenance requirements.
- Versatility: With multiple options available, including an integrated fuel tank, water heater, ATS, and PMG generator, you can customize your genset to suit your specific needs.
- Eco-Friendly: Low fuel consumption and emission levels make it an environmentally responsible choice.
- User-Friendly: The intuitive DEIF SGC-420 controller simplifies operation and monitoring, ensuring seamless power management.
Optional Features:
- Integrated Fuel Tank: Extend your operational autonomy with an additional fuel tank.
- Water Heater: Keep your generator fluids warm during cold weather operations.
- ATS (Automatic Transfer Switch): Seamlessly switch between grid power and generator power during outages.
- PMG Generator: Enhance power quality and reliability with a permanent magnet generator.
- SYNC Function: Synchronize multiple generators for increased power output and redundancy.
FAQs:
Q: What is the maximum noise level of the 60kVA Mobile Trailer Generator?
A: The generator operates at a noise level of 70dB(A) at 7 meters, ensuring quiet performance even in noise-sensitive areas.
Q: How long can the generator run on a full tank of fuel?
A: The standard fuel tank provides up to 8 hours of runtime, but optional larger tanks are available for extended operation.
Q: Does the generator come with an automatic transfer switch?
A: The ATS is available as an optional feature. It allows for seamless transfer between grid power and generator power during power outages.
Experience the power and reliability of our 60kVA Mobile Trailer Generator – your ideal mobile genset solution for all your power needs. Order now and enjoy peace of mind with our FOB Fuzhou Port delivery and secure payment options.
