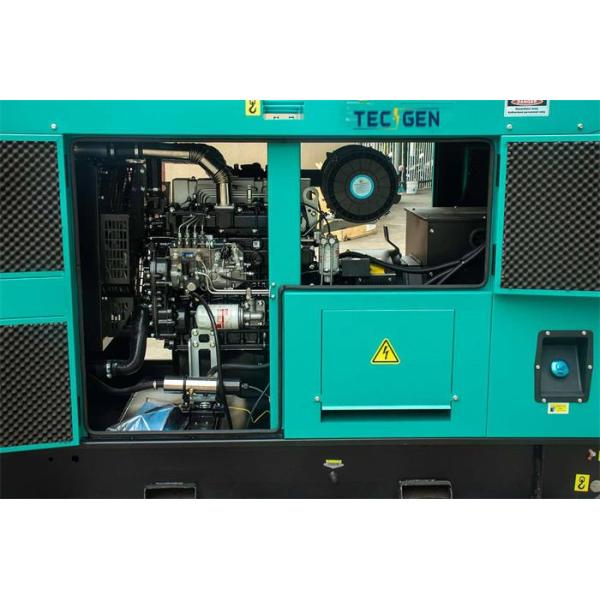

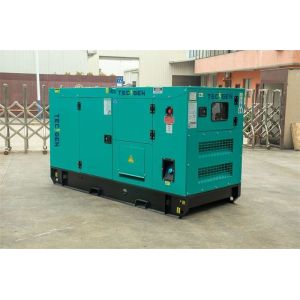

3 Cylinder 35kVA generator silent Perkins engine generator with soundproof canopy for continuous use
Product Description: 3 Cylinder 35kVA Perkins Engine Generator
Standard Features:
Introducing our flagship 3 Cylinder 35kVA Perkins Engine Generator, the ultimate power solution for your industrial and commercial needs. Boasting a reliable Perkins 1103A-33G diesel engine, this generator delivers prime power of 28kW and standby power of 31kW, ensuring continuous and uninterrupted power supply. Designed for durability and efficiency, it runs at a smooth 1800rpm, producing a clean and stable 60Hz AC three-phase power output with a voltage of 240V.
Key Features:
- Powerful Performance: Equipped with a 3.3L displacement engine, the 35kVA generator effortlessly handles heavy loads, making it ideal for a wide range of applications from construction sites to emergency backup systems.
- Silent Operation: Encased in a soundproof canopy made of galvanized steel plate, this generator operates at minimal noise levels, making it perfect for noise-sensitive environments.
- Easy Maintenance: Featuring a dry-type air filter, fuel filter, and oil filter system, maintenance is quick and hassle-free, ensuring your generator stays in top condition.
- Advanced Controller: The integrated DEIF SGC-420 controller offers comprehensive monitoring and protection, including AMF module, automatic battery charging, and emergency stop functions, enhancing safety and reliability.
- Versatile Options: With options for open type, single-phase output, and various fuel tank capacities, this generator is tailored to meet your specific requirements.
3 Cylinder 35kVA Generator Specifications:
| 3 Cylinder 35kVA Generator Details |
| Perkins Genset | Type | Silent |
| Model | TG39PSD6 |
| Frequency | 60Hz |
| Speed | 1800rpm |
| Voltage | 240V |
| Phase | AC Three Phase |
| Prime Power | 28kW / 35kVA |
| Standby Power | 31kW / 39kVA |
| Rate Current | 84.2A |
| ATS | 100A Built-in ATS |
| Dimensions | L2250 x W1000 x H1250mm |
| Weight | 900kgs |
| Fuel Capacity | 8 Running Hours |
| Option Types | Single Phase, Open Type |
| General Features |
| Engine | Perkins | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| Perkins Diesel Engine Technical Data |
| Brand | Perkins |
| Engine Model | 1103A-33G |
| Rated Power | 33.2kW |
| Cylinder | 3 Cylinder |
| Bore*Stroke | 105*127mm |
| Displacement | 3.3L |
| Aspiration | Naturally Aspriated |
| Speed | 1800rpm |
| Cooling System | Water Cooled |
| Fuel Consumption at 100% Load | 8.6L |
| Speed Governor | Electric |
| Start System | 12V Electric Starter |
| Option Engine Brands |
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC |
| AC Alternator Technical Data |
| Brand | Tecgen |
| Alternator Model | TGI184S28 |
| Rated Power | 35kVA |
| Speed | 1800rpm |
| Frequency | 60Hz |
| Phase | Three Phase, Four Wire |
| Power Factor | 0.8 |
| Exciter type | Single bearing, brushless, Self-excited |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Option Alternator Brands |
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen |
| Controller System |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection & RS485 & CANbus & PLS & BTS Functions |
| Alarms | Over and Under Speed |
| Low and High Battery Voltage |
| Start and Stop Failure |
| Charge Fail |
| Over Current |
| Under / Over Generator Voltage |
| Low Oil Pressure |
| Emergency Stop |
| High Engine Temperature |
| Over Load |
| OPTIONAL EQUIPMENTS |
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
Ideal for powering small to medium-sized businesses, hospitals, schools, construction sites, and events, the 3 Cylinder 35kVA Perkins Engine Generator is a versatile power source during power outages or as a primary power supply in remote locations. Its compact design and easy maneuverability make it an excellent choice for mobile applications.
Advantages:
- Durability: The Perkins engine is renowned for its longevity and dependability, ensuring years of reliable service.
- Efficient Fuel Consumption: With a fuel consumption rate of 8.6L at full load, this generator maximizes fuel efficiency, reducing operational costs.
- Eco-Friendly: The naturally aspirated engine and low emissions contribute to a greener footprint.
- Portable Design: Compact dimensions (L2250 x W1000 x H1250mm) and a weight of just 900kgs make it easy to transport and install.
- Comprehensive Safety: Equipped with multiple alarms and protection features, including low oil pressure and high engine temperature warnings, ensuring safe operation.
Options:
- Fuel Tank Extensions: Choose from 8, 12, or 24-hour fuel tanks for extended runtimes.
- Parallel Panel: Increase power output by connecting multiple generators in parallel.
- Remote Control Panel: Enables remote monitoring and control for added convenience.
- Soundproof Enclosure Upgrades: Customize your soundproofing needs for even quieter operation.
FAQs:
- Q: What is the maximum power output of this generator?
A: The 3 Cylinder 35kVA Perkins Engine Generator has a prime power output of 28kW and a standby power of 31kW. - Q: Is it suitable for home use?
A: While primarily designed for commercial and industrial use, it can also be used for large homes or as a backup power source. - Q: How long can it run on a full tank?
A: The fuel capacity varies depending on the tank option chosen, ranging from 8 to 24 hours. - Q: What type of engine does it use?
A: It is powered by a reliable Perkins 1103A-33G diesel engine, renowned for its durability and performance.
Experience the reliability and power of our 3 Cylinder 35kVA Perkins Engine Generator, the perfect addition to your power solutions portfolio. With its combination of advanced features, efficient performance, and versatile options, it's a smart choice for any business or organization seeking a dependable backup power source.
