Continuous 12kW Soundproof Diesel Generator silent Perkins genset for continuous power
Product Title:

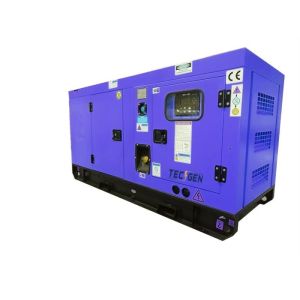

Continuous 12kW Soundproof Perkins Silent Diesel Generator - TG17PSD6
Standard Features:
Introducing the TG17PSD6, a state-of-the-art 12kW/15kVA diesel generator designed for continuous power supply with unparalleled soundproofing. Equipped with a Perkins Wuxi 403A-15G1 engine, this generator ensures reliable performance and minimal noise pollution, making it ideal for a wide range of applications.
Key Features:
- Powerful Performance: Delivering up to 13kW/17kVA of maximum power, the TG17PSD6 powers through even the most demanding tasks with ease.
- Ultra-Silent Operation: With advanced soundproofing technology, this generator operates at whisper-quiet levels, ensuring a peaceful environment.
- Efficient Engine: The Perkins Wuxi 403A-15G1 engine boasts a 14.6kW rated power, direct injection, and water-cooling for optimal fuel efficiency and longevity.
- High-Quality Alternator: The Tecgen TGI164S12 alternator guarantees pure sine wave output, 92.5% efficiency, and brushless, self-excitation for maintenance-free operation.
- Intelligent Control System: The DEIF SGC-420 controller provides comprehensive monitoring and protection, including ATS/AMF functionality, RS485 & CAN communication, and multiple protection modes.
Continuous 12kW Soundproof Diesel Generator Datasheets:
| Continuous 12kW Soundproof Diesel Generator Specification |
| Genset Model | TG17PSD6 |
| Rated Power | 12kW / 15kVA |
| Max Power | 13kW / 17kVA |
| Frequency | 60Hz |
| Rated Voltage | 208 / 120V |
| Rated Current (A) | 41.6A |
| ATS | 63A ATS |
| Dimension (mm) | L1700 x W850 x H1000 |
| Gross Weight (kg) | 650 |
| Diesel Engine | Brand | Perkins Wuxi |
| Model | 403A-15G1 |
| Configuration | Four-stroke,Water-cooling,Direct Injection |
| Rated Power | 14.6kW |
| Rated Speed (rpm) | 1800rpm |
| Cylinder No. | 3 |
| Bore*Stroke (mm) | 84 x 90 |
| Displacement(L) | 1.496 |
| Compression ratio | 22.5:1 |
| Intake | Naturally aspirated |
| Fuel Consumption (g/Kw*h) | 240@100% load |
| Starting method | 12/24V DC |
| AC Alternator | Brand | Tecgen |
| Model | TGI164S12 |
| Rated Power | 12kW |
| Speed | 1800rpm |
| Materials | 100% pure copper |
| Efficiency | 92.50% |
| Voltage Regulation | <=±1 |
| Voltage Regulation | Brushless, Self-excitation |
| Insulation Class | H |
| Option brands | Stamford / Leroy Somer / Meccalte |
| Control System | Brand | DEIF |
| Model | SGC-420 |
| Working Voltage | DC8.0V to DC35.0V, continuous |
| Overall Dimensions (mm) | 233*38.5*173 |
| Panel Cutout (mm) | 219*158 |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 |
| Functions | AMF/ATS |
| RS485 & CAN communication |
| 9 Inlet & 7 Outlet |
| PLC & BTN |
| Protections | Under-speed |
| Over-speed |
| Configurable crank connect |
| Battery monitoring |
| Charging alternator |
| Pre-heat |
| Coolant temperature |
| Lube oil pressure |
| Fuel level detection |
| Fuel theft detection |
| ECU communication failure |
| ECU diagnostic lamp |
| Option brands | Deepsea / Smartgen / ComAp / Mebay |
| Genset option equipment |
| Integrated-Fuel-Tank | ATS Box / Cabinet |
| PMG Alternator | Sync Panel |
| Trailer Type | Engine Heater |
| Water Heater | Fuel – Water Separator |
| Maintenance Timetable of Diesel Generating Set |
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours |
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Level of engine oil | √ | √ | √ | √ | √ |
| Replace | Oil Filter | | | | √ | √ |
| Engine Olil | | | | √ | √ |
| Clean | Crankcase box | | | | √ | √ |
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Radiator Block | | | √ | √ | √ |
| Soft Tube and Joint | | | √ | √ | √ |
| Fluid | | √ | √ | √ | √ |
| Antifreeze and Anticorrosion | | | √ | √ | √ |
| Belt Status | | | | √ | √ |
| Add Grease lubricant | Fan and Tensing | | | | √ | √ |
| Belt wheel | | | | √ | √ |
| Check | Driving Belt wheel and pump | | | | √ | √ |
| Replace | Cooling Liquid | Every 12 months |
| Clean | Cooling System |
| Airflow System | Check | Oil Gas | | | √ | √ | √ |
| Cleaner | | √ | √ | √ | √ |
| Pipe Fittings and Joint | | | | √ | √ |
| Replace | Core of Air Cleaner | | | | | √ |
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ |
| Quality of Fuel | | √ | √ | √ | √ |
| Pump Nozzle | | | | | √ |
| Fuel pipe and Joint | | | | √ | √ |
| Oil Pump | | | √ | √ | √ |
| Discharged | Deposition of Fuel Tank | | | √ | √ | √ |
| Replace | Filter of oil | | | | √ | √ |
| Check | Nozzle | Every Two Years |
| Adjust | Value | | | | | √ |
Usage:
Perfect for homes, offices, construction sites, or as a backup power source during emergencies, the TG17PSD6 ensures uninterrupted power supply. Its compact design and easy portability make it a versatile addition to any power solution.
Advantages:
- Durability: Built with premium materials and components, this generator is designed for long-lasting performance.
- Fuel Efficiency: With a fuel consumption of just 240g/Kw*h at full load, the TG17PSD6 minimizes operational costs.
- User-Friendly: Intuitive controls and comprehensive monitoring systems make operation and maintenance hassle-free.
- Versatile Options: Choose from a range of optional equipment, including integrated fuel tanks, ATS boxes, and engine heaters, to tailor the generator to your specific needs.
Options:
- Integrated Fuel Tank
- ATS Box/Cabinet
- PMG Alternator
- Sync Panel
- Trailer Type
- Engine Heater
- Water Heater
- Fuel-Water Separator
FAQs:
Q: Is this generator soundproof?
A: Yes, the TG17PSD6 features advanced soundproofing technology for ultra-quiet operation.
Q: What is the maximum power output?
A: The generator has a maximum power output of 13kW/17kVA.
Q: What engine does it use?
A: It is powered by a Perkins Wuxi 403A-15G1 engine, renowned for its reliability and fuel efficiency.
Experience the peace of mind that comes with a Continuous 12kW Soundproof Perkins Silent Diesel Generator - TG17PSD6. Order now and enjoy reliable, quiet power for all your needs.
