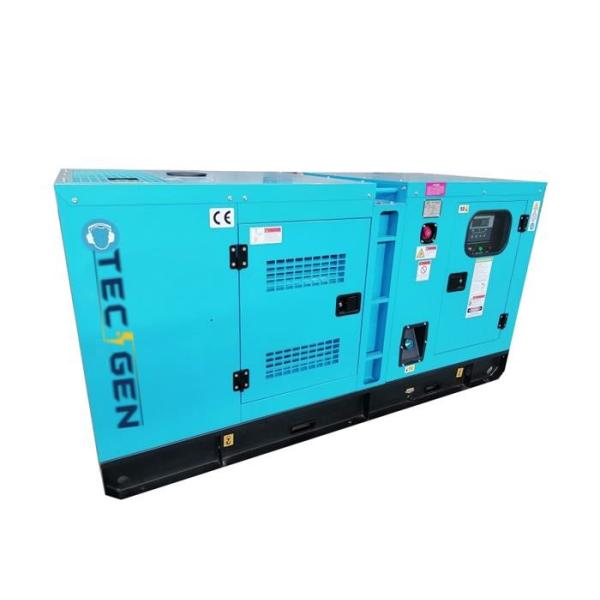

Continuous 9kW silent diesel generator Perkins generator with silent type for continuous use
Product Title:
Continuous 9kW Silent Diesel Generator with Perkins Engine - Reliable Power Solution
Standard Features:
Experience seamless power backup with our TG12PSD6, a premium 9kW/11kVA silent diesel generator. Equipped with a Perkins Wuxi 403D-11G engine, this generator boasts a robust four-stroke, water-cooled, direct injection system for maximum efficiency and durability. The compact design (L1700 x W850 x H1000mm) and lightweight (600kg) make it easy to transport and install.
Key Features:
- Ultra-Silent Operation: Perfect for noise-sensitive environments, our generator operates at whisper-quiet levels.
- Powerful Perkins Engine: Powered by a reliable Perkins 403D-11G engine, delivering 10.7kW of rated power for uninterrupted power supply.
- High-Efficiency Alternator: The Tecgen TGI164S9 alternator ensures 92.5% efficiency, providing clean and stable AC power.
- Advanced Control System: Equipped with DEIF SGC-420 controller, featuring comprehensive protections and AMF/ATS functionality for automatic start/stop.
- Durable & Maintenance-Friendly: Long-lasting components and easy access to service points reduce downtime and maintenance costs.
Continuous 9kW Silent Diesel Generator Datasheets:
| Continuous 9kW Silent Diesel Generator Specification |
| Genset Model | TG12PSD6 |
| Rated Power | 9kW / 11kVA |
| Max Power | 10kW / 12kVA |
| Frequency | 60Hz |
| Rated Voltage | 208 / 120V |
| Rated Current (A) | 31.2A |
| ATS | 63A ATS |
| Dimension (mm) | L1700 x W850 x H1000 |
| Gross Weight (kg) | 600 |
| Diesel Engine | Brand | Perkins Wuxi |
| Model | 403D-11G |
| Configuration | Four-stroke,Water-cooling,Direct Injection |
| Rated Power | 10.7kW |
| Rated Speed (rpm) | 1800rpm |
| Cylinder No. | 3 |
| Bore*Stroke (mm) | 77 x 81 |
| Displacement(L) | 1.131 |
| Compression ratio | 23:1 |
| Intake | Naturally aspirated |
| Fuel Consumption (g/Kw*h) | 240@100% load |
| Starting method | 12/24V DC |
| AC Alternator | Brand | Tecgen |
| Model | TGI164S9 |
| Rated Power | 9kW |
| Speed | 1800rpm |
| Materials | 100% pure copper |
| Efficiency | 92.50% |
| Voltage Regulation | <=±1 |
| Voltage Regulation | Brushless, Self-excitation |
| Insulation Class | H |
| Option brands | Stamford / Leroy Somer / Meccalte |
| Control System | Brand | DEIF |
| Model | SGC-420 |
| Working Voltage | DC8.0V to DC35.0V, continuous |
| Overall Dimensions (mm) | 233*38.5*173 |
| Panel Cutout (mm) | 219*158 |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 |
| Functions | AMF/ATS |
| RS485 & CAN communication |
| 9 Inlet & 7 Outlet |
| PLC & BTN |
| Protections | Under-speed |
| Over-speed |
| Configurable crank connect |
| Battery monitoring |
| Charging alternator |
| Pre-heat |
| Coolant temperature |
| Lube oil pressure |
| Fuel level detection |
| Fuel theft detection |
| ECU communication failure |
| ECU diagnostic lamp |
| Option brands | Deepsea / Smartgen / ComAp / Mebay |
| Genset option equipment |
| Integrated-Fuel-Tank | ATS Box / Cabinet |
| PMG Alternator | Sync Panel |
| Trailer Type | Engine Heater |
| Water Heater | Fuel – Water Separator |
| Maintenance Timetable of Diesel Generating Set |
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours |
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Level of engine oil | √ | √ | √ | √ | √ |
| Replace | Oil Filter | | | | √ | √ |
| Engine Olil | | | | √ | √ |
| Clean | Crankcase box | | | | √ | √ |
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Radiator Block | | | √ | √ | √ |
| Soft Tube and Joint | | | √ | √ | √ |
| Fluid | | √ | √ | √ | √ |
| Antifreeze and Anticorrosion | | | √ | √ | √ |
| Belt Status | | | | √ | √ |
| Add Grease lubricant | Fan and Tensing | | | | √ | √ |
| Belt wheel | | | | √ | √ |
| Check | Driving Belt wheel and pump | | | | √ | √ |
| Replace | Cooling Liquid | Every 12 months |
| Clean | Cooling System |
| Airflow System | Check | Oil Gas | | | √ | √ | √ |
| Cleaner | | √ | √ | √ | √ |
| Pipe Fittings and Joint | | | | √ | √ |
| Replace | Core of Air Cleaner | | | | | √ |
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ |
| Quality of Fuel | | √ | √ | √ | √ |
| Pump Nozzle | | | | | √ |
| Fuel pipe and Joint | | | | √ | √ |
| Oil Pump | | | √ | √ | √ |
| Discharged | Deposition of Fuel Tank | | | √ | √ | √ |
| Replace | Filter of oil | | | | √ | √ |
| Check | Nozzle | Every Two Years |
| Adjust | Value | | | | | √ |
Usage:
Ideal for use in homes, offices, hospitals, data centers, and remote locations where reliable power is crucial. Suitable for emergency backup, prime power, or continuous operation.
Advantage:
- Silent Performance: Reduces noise pollution, making it suitable for residential and commercial applications.
- Fuel Efficiency: Low fuel consumption (240g/kWh at 100% load) minimizes operational costs.
- Versatile Options: Choose from various alternator brands and optional equipment like integrated fuel tanks, ATS boxes, and trailers for customized solutions.
- Easy Maintenance: Regular maintenance tasks are straightforward, ensuring your generator stays in top condition.
Options:
- Opt for Stamford, Leroy Somer, or Meccalte alternators for enhanced performance.
- Upgrade with an integrated fuel tank for extended runtime.
- Add an ATS box for automatic power transfer.
- Choose from various trailer types for easy transportation.
FAQ:
- Q: How loud is this generator?
- A: It's designed for ultra-silent operation, making it suitable for noise-sensitive areas.
- Q: What's the fuel consumption at full load?
- A: The fuel consumption is 240g/kWh at 100% load, ensuring cost-effective operation.
- Q: Can I customize the generator with additional features?
- A: Yes, we offer various optional equipment to tailor the generator to your specific needs.
Experience the reliability and power of the Continuous 9kW Silent Diesel Generator with Perkins Engine. Order now and enjoy uninterrupted power supply for all your essential needs.
