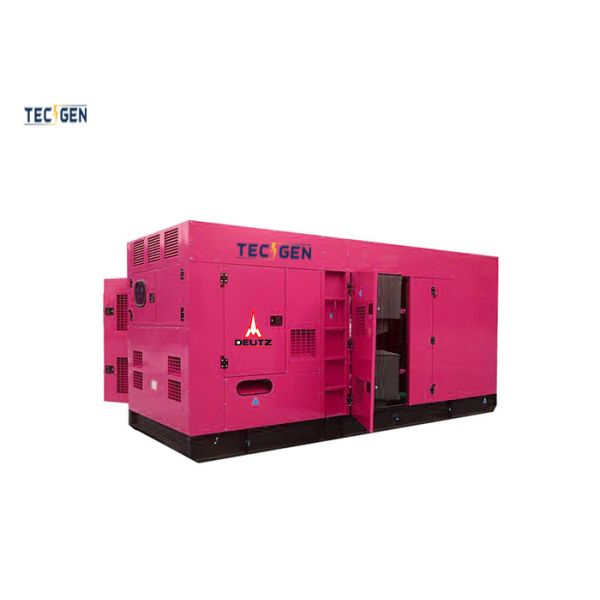

Silent type 350kW generator Deutz diesel generator for uninterrupted power supply
Standard Features:
Introducing our flagship Silent Type 350kW Generator, powered by the renowned Deutz BF8M1015C-LA G1A diesel engine. This generator set, available in both open and silent configurations (TG481DE & TG481DES), is designed for reliability, durability, and exceptional performance. Operating at 50Hz with a versatile 400/230V three-phase output, it delivers prime power of 350kW and standby power of 385kW, ensuring uninterrupted power supply for critical applications.
Key Features:
- Ultra-Silent Operation: The silent enclosure significantly reduces noise levels, making it ideal for noise-sensitive environments such as hospitals, data centers, and residential areas.
- Deutz Engine: Equipped with a robust Deutz diesel engine, renowned for its fuel efficiency, low emissions, and long service life.
- High-Quality Alternator: The Leroy Somer TAL-A473-B alternator boasts a 365kW rating, ensuring clean and stable power output.
- Advanced Controller: The DEIF SGC-420 controller with AMF module offers seamless automatic start/stop, battery charging, and ATS (Automatic Transfer Switch) compatibility for seamless power transfer.
- Fuel Efficiency: Optimized fuel consumption, with as low as 24L/h at 25% load, reducing operational costs.
Silent Type 350kW Generator Datasheet:
| Technical Specification: |
| Silent Type 350kW Generator Specification |
| Genset Model | TG481DE | TG481DES |
| OpenType | Silent |
| Frequency | 50Hz |
| Voltage | 400 / 230V |
| Phase | 3 |
| Rate Current | 631.5A |
| Prime Power | 350kW / 438kVA |
| Standby Power | 385kW / 480kVA |
| Engine Model | BF8M1015C-LA G1A |
| Alternator Model | TAL-A473-B |
| Controller | DEIF SGC-420 |
| Weight & Dimensions |
| Length (mm) | 3400 | 4210 |
| width (mm) | 1270 | 1730 |
| Height (mm) | 2100 | 2230 |
| Weight (kgs) | 3970 | 5200 |
| Engine Specification |
| Brand | Deutz |
| Engine Model | BF8M1015C-LA G1A |
| Rate power | 418Kw |
| Injection | Indirect |
| Aspiration | CAC |
| No. of cylinders | 8 |
| Bore of Stroke (mm) | 132 x 145 |
| Displacement (L) | 15.874 |
| Cooling | water |
| Compression Ratio | 16.5:1 |
| Engine Oil capacity (L) | 48 |
| Coolant Capacity ( In radiator) | 21 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 95.8 |
| 75% Load (L/h) | 71.9 |
| 50% Load (L/h) | 47.9 |
| 25% Load (L/h) | 24 |
| Alternator Specification |
| Brand | Leroy Somer |
| Model | TAL-A473-B |
| Rate Output | 365kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Usage:
Ideal for a wide range of applications requiring reliable backup or prime power, including industrial facilities, construction sites, hospitals, hotels, and telecommunications centers. Its silent design and robust Deutz diesel engine make it the perfect choice for anywhere noise levels matter.
Advantages:
- Durability: Rugged construction and high-quality components ensure years of trouble-free operation.
- Versatility: Suitable for both prime and standby power applications, with easy integration into existing power systems.
- Low Maintenance: Simplified maintenance procedures and long service intervals minimize downtime.
- Eco-Friendly: Low emissions and high fuel efficiency contribute to a greener environment.
- Compact Design: Space-saving dimensions and lightweight construction facilitate easy transportation and installation.
Optional Equipment:
Upgrade your generator with optional accessories like an ATS Box for seamless power transfer, a Remote Control System for convenient monitoring and control, a Daily Fuel Tank for extended runtime, and a Trailer Type configuration for enhanced mobility. Additionally, opt for an Engine Heater and Water Heater to ensure reliable start-ups in cold climates, a Fuel-Water Separator to protect your engine from contamination, and a 3000-Hour Spare Parts Kit for maintenance readiness.
FAQs:
- Q: What is the noise level of the silent model?
- A: The silent enclosure significantly reduces noise, making it suitable for noise-sensitive environments. Exact dB levels vary but are designed to minimize disturbance.
- Q: Can this generator be used for both prime and standby power?
- A: Yes, the 350kW Generator is versatile and can be used for both prime and standby power applications.
- Q: What is the fuel consumption at 75% load?
- A: At 75% load, the generator consumes approximately 71.9L/h of fuel, ensuring cost-effective operation.
Experience the ultimate in reliable, efficient, and silent power generation with our 350kW Deutz Diesel Generator. Order now and enjoy peace of mind with uninterrupted power supply.
