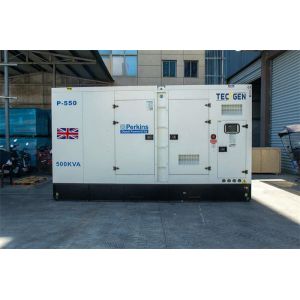

Silent 440kW Perkins genset 550kVA Perkins diesel generator with canopy for outdoor use
1.1.1Standard Features of the Silent 440kW Perkins Genset
Introducing the Silent 440kW Perkins Genset, a masterpiece of engineering that combines robust performance with whisper-quiet operation. Powered by the reliable Perkins 2506C-E15TAG2 diesel engine, this genset offers prime power of 400kW and standby power of 440kW, ensuring that your essential loads remain powered even during unexpected outages. With a frequency of 50Hz and a voltage of 400/230V in three-phase configuration, it meets the power needs of various industrial and commercial applications.
1.1.2Key Features:
- Silent Operation: Encased in a soundproof canopy, the Silent 440kW Perkins Genset operates at a noise level that won't disturb your surroundings, making it ideal for residential areas and noise-sensitive environments.
- Powerful Engine: The Perkins 2506C-E15TAG2 engine, with its turbocharged, air-to-air charge cooling system, provides efficient and reliable power output.
- Leroy Somer Alternator: The TAL-A473-C alternator ensures clean and stable power, with an insulation class of H and an IP23 enclosure for added safety.
- Advanced Controller: The DEIF SGC-420 controller offers comprehensive control features, including AMF (Automatic Mains Failure) module, static auto battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection.
-
Silent 440kW Perkins Genset Datasheets:
| Technical Specification: |
| Silent 440kW Perkins Genset Specification |
| Genset Model | TG550P | TG550PS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 400/230V |
| Phase | Three Phase |
| Rate Current | 721.7A |
| Prime Power | 400kW / 500kVA |
| Standby Power | 440kW / 550kVA |
| Engine Model | 2506C-E15TAG2 |
| Alternator Model | TAL-A473-C |
| Controller | DEIF SGC-420 |
| Weight & Dimensions |
| Length (mm) | 3600 | 4500 |
| width (mm) | 1400 | 1730 |
| Height (mm) | 2000 | 2230 |
| Weight (kgs) | 4300 | 5600 |
| Perkins Engine Specification |
| Brand | Perkins (USA) |
| Engine Model | 2506C-E15TAG2 |
| Prime/Standby power | 435kW / 478kW |
| Injection | Indirect |
| Aspiration | turbocharged, air to air charge cooling |
| No. of cylinders | 6 |
| Bore of Stroke (mm) | 137 x 171 |
| Displacement | 15L |
| Cooling | water |
| Compression Ratio | 16:1 |
| Engine Oil capacity (L) | - |
| Coolant Capacity ( In radiator) | 58 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 95 |
| 75% Load (L/h) | 71 |
| 50% Load (L/h) | 48 |
| 25% Load (L/h) | 24 |
| Leroy Somer Alternator Specification |
| Brand | Leroy Somer |
| Model | TAL-A473-C |
| Max Output | 550kVA |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
1.1.3Usage
The Silent 440kW Perkins Genset is perfect for a wide range of applications, including hospitals, data centers, hotels, and industrial facilities. Its silent operation and robust performance make it an ideal choice for providing backup power during emergencies or as a primary power source in off-grid locations.
1.1.4Advantage
- Fuel Efficiency: With fuel consumption rates as low as 24 liters per hour at 25% load, the Silent 440kW Perkins Genset offers significant cost savings compared to other gensets in its class.
- Durability: Built with high-quality materials and precision engineering, this genset is designed to withstand the harshest environments and provide years of trouble-free operation.
- Ease of Maintenance: The Perkins engine and Leroy Somer alternator are known for their reliability and ease of maintenance, reducing downtime and repair costs.
1.1.5Option
Upgrade your Silent 440kW Perkins Genset with optional equipment to suit your specific needs:
- ATS Box: Automatically transfers power between the genset and the utility grid, ensuring seamless power supply.
- Remote Control: Monitor and control your genset from anywhere in the world via a smartphone or computer.
- Daily Fuel Tank: Provides a convenient fuel source for regular use, reducing the need for frequent refueling.
- Trailer Type: Easily transport your genset to different locations with a built-in trailer.
1.1.6FAQ
Q: How quiet is the Silent 440kW Perkins Genset?
A: The genset operates at noise levels that are significantly lower than traditional gensets, making it ideal for noise-sensitive environments.
Q: What is the fuel consumption rate of the Silent 440kW Perkins Genset?
A: The fuel consumption rate varies based on load, but it can be as low as 24 liters per hour at 25% load.
Q: Can the Silent 440kW Perkins Genset be used as a primary power source?
A: Yes, it can be used as a primary power source for off-grid locations or as a backup power source during outages.
1.1.7Conclusion
When you need reliable, silent, and efficient power, look no further than the Silent 440kW Perkins Genset. With its robust Perkins diesel engine, high-quality Leroy Somer alternator, and advanced DEIF controller, this genset is designed to meet your power needs while minimizing noise and fuel consumption. Whether you're looking for a backup power solution or a primary power source, the Silent 440kW Perkins Genset is the perfect choice for your application. Don't settle for anything less than the best – choose the Silent 440kW Perkins Genset for unmatched performance and reliability.
