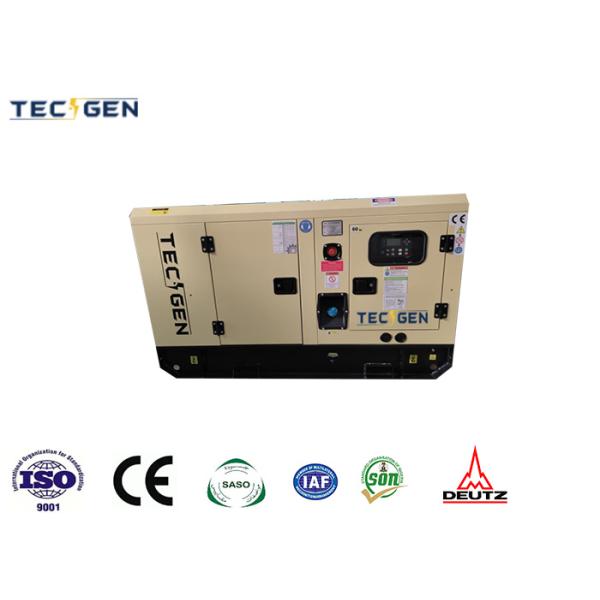

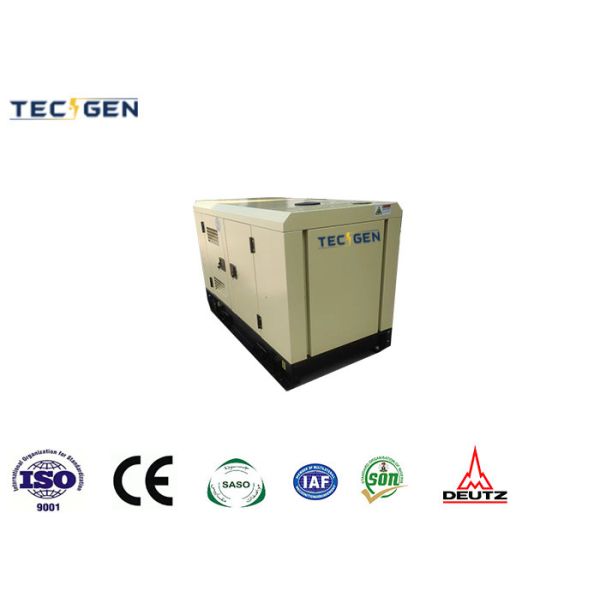

Super silent 20kW generator Deutz genset with compact soundproof canopy outdoor use
Standard Features of the Super Silent 20kW Generator:
Experience the pinnacle of power and silence with our Super Silent 20kW Generator, model TG28DESD6. Engineered for reliability and efficiency, this generator set boasts a Deutz BFM3 G1 engine, renowned for its robust performance and durability. With a frequency of 60Hz and a rated speed of 1800RPM, it provides a stable and consistent power supply, ideal for a variety of applications. The generator operates at a voltage of 208/120V and offers a three-phase, 4 or 12-wire configuration, accommodating diverse electrical needs.
Key Features Highlighting the Deutz Genset:
- Silent Operation: The Super Silent 20kW Generator excels in its whisper-quiet performance, with a noise level of just 65 dB(A) at 7 meters, making it suitable for both residential and commercial use where noise pollution is a concern.
- Powerful Engine: Powered by the Deutz BFM3 G1 engine, this generator delivers a prime power of 20kW / 25kVA and a standby power of 22kW / 28kVA, ensuring you have ample power for essential and emergency needs.
- Compact Design: With dimensions of 2100mm (L) x 980mm (W) x 1460mm (H) and a weight of 1050kg, this generator is designed for easy portability and installation, fitting seamlessly into tight spaces.
- Advanced Controller: Equipped with the DEIF SGC 420 controller, this generator offers sophisticated control features, including an AMF module, static auto battery charger, emergency stop push button, and CANBUS & MPU VERSION for seamless integration and monitoring.
Super Silent 20kW Generator Datasheets:
| Technical Specification: |
| Super Silent 20kW Generator Specification |
| Genset Model | TG28DESD6 |
| Silent |
| Frequency | 60Hz |
| Rate Speed | 1800RPM |
| Voltage | 208/120V |
| Phase | 3 Phase, 4 or 12 Wires |
| Rate Current | 69.4A |
| Prime Power | 20kW / 25kVA |
| Standby Power | 22kW / 28kVA |
| Engine Model | Deutz BFM3 G1 |
| Alternator Model | TGI184S20 |
| Controller | DEIF SGC 420 |
| Noise Level | 65 dB(A) @ 7m |
| Genset Weight & Dimensions |
| Length (mm) | 2100 |
| width (mm) | 980 |
| Height (mm) | 1460 |
| Weight (kgs) | 1050 |
| Deutz Engine Specifications |
| Brand | Deutz |
| Engine Model | BFM3 G1 |
| Standby power | 28kW |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Speed | 1800RPM |
| Bore of Stroke (mm) | 98 x 105 |
| Displacement (L) | 3.168 |
| Cooling | Water Cooled |
| Compression Ratio | 18.5:1 |
| Engine Oil capacity (L) | 4.8 |
| Coolant Capacity ( In radiator) | 4.8 |
| Governor | Electric (GAC) |
| Air Filter | Dry Element |
| Fuel consumption | @ 60Hz |
| 100% Load (L/h) | 6.6 |
| 75% Load (L/h) | 5.2 |
| 50% Load (L/h) | 3.6 |
| 25% Load (L/h) | 2 |
| Tecgen Alternator Specification |
| Brand | Fujian Tecgen Power Co., Ltd |
| Model | TGI184S20 |
| Rate Output | 20kW |
| Speed | 1800RPM |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | DEIF |
| Model | SGC 420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| CANBUS & MPU VERSION |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Usage of the Super Silent 20kW Generator:
Whether you're looking to power your home during a power outage, a small business needing a reliable backup power source, or a construction site requiring consistent power supply, the Super Silent 20kW Generator is your ideal solution. Its versatile design and powerful engine make it suitable for a wide range of applications, ensuring you stay connected and operational no matter the circumstances.
Advantages of Choosing Our Generator:
- Reliability: Backed by the reputation of the Deutz engine, this generator is built to last, providing years of dependable service.
- Efficiency: With low fuel consumption rates, even at full load, this generator maximizes energy efficiency, reducing operational costs.
- Eco-Friendly: The water-cooled engine and clean emissions make this generator an environmentally friendly choice.
- User-Friendly: The intuitive controller and easy-to-read displays make monitoring and maintaining the generator a breeze.
Optional Equipment to Enhance Your Generator:
Upgrade your generator with our optional equipment to suit your specific needs:
- ATS Box: Automatic Transfer Switch for seamless power transfer between the generator and main power supply.
- Switch Box: Manual transfer switch for added control and safety.
- Remote Control: Operate your generator from a distance for added convenience.
- Daily Fuel Tank: Ensure a continuous power supply with an additional fuel tank.
- Engine Heater and Water Heater: Protect your generator from freezing in cold climates.
- PMG Generator: Provides a stable and accurate power output.
- Parallel Panel: Connect multiple generators for increased power output.
- Fuel-Water Separator: Keeps fuel clean and free of contaminants.
- Trailer Type: Mobile generator setup for easy transportation to job sites.
- 3000 Hours Spare Parts: Ensure you're always prepared with a kit of essential spare parts.
FAQs:
Q: How noisy is the Super Silent 20kW Generator?
A: It operates at a noise level of 65 dB(A) at 7 meters, making it one of the quietest generators in its class.
Q: What is the fuel consumption rate of this generator?
A: At 100% load, the fuel consumption rate is 6.6 liters per hour, decreasing to 5.2 liters at 75% load, 3.6 liters at 50% load, and 2 liters at 25% load.
Q: Can this generator be used for commercial purposes?
A: Absolutely. Its powerful engine and versatile design make it suitable for both residential and commercial applications.
Experience the ultimate combination of power, silence, and reliability with our Super Silent 20kW Generator featuring a Deutz Genset. Don't let power outages disrupt your life or business – invest in a generator that delivers consistent, dependable power when you need it most.
