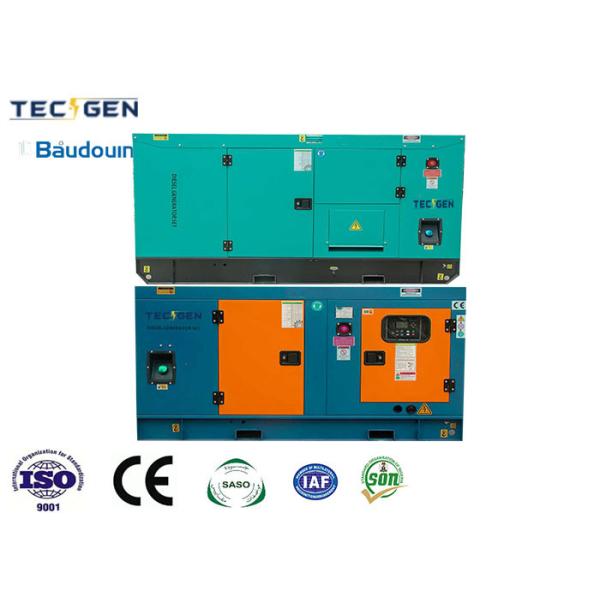

Baudouin 80kW diesel generator silent generator set with 72dba soundproof canopy for industria use
Standard Features of the Baudouin 80kW Diesel Generator
Introducing the Baudouin 80kW Diesel Generator, the epitome of silent and reliable power generation. Engineered with precision and designed for efficiency, this generator set, model TG110WBS, offers a seamless blend of performance and tranquility. With a robust Weichai Baudouin 4M10G110/5 engine and a Copy Stamford TGI274S80 alternator, it delivers prime power of 80kW and standby power of 88kW, making it ideal for a wide range of applications.
Operating at a consistent 1500rpm, this silent generator set produces a rate voltage of 440V//415V/400V/380V/230V/220V/110V with a frequency of 50Hz. The power factor (P.F.) is optimized at 0.8, ensuring maximum energy efficiency. The prime output current of 139.1A guarantees stable and consistent power output, making it perfect for sensitive electronic loads.
Key Features That Set It Apart
- Silent Operation: The Baudouin 80kW Diesel Generator is designed for silent operation, ideal for residential, commercial, and industrial areas where noise pollution is a concern.
- Versatile Voltage Options: With multiple voltage options available, this generator can cater to various electrical needs and international standards.
- Advanced Controller System: Equipped with a DEIF SGC-420 controller, it features automatic mains failure detection, static with auto battery charger, emergency stop push button, ATS & RS485 connection, and CAN functions for seamless integration and monitoring.
- High-Efficiency Engine: The Weichai Baudouin engine with a displacement of 4.1L and a compression ratio of 17.5:1 ensures optimal fuel efficiency and reduced emissions.
- Turbocharged & Aftercooled: The aspiration system ensures better combustion and longer engine life.
- Brushless Alternator: The TECGEN TGI274S80 alternator with a single bearing, brushless, self-excited design with AVR provides reliable and maintenance-free power generation.
Baudouin 80kW Diesel Generator Specifications:
| Baudouin 80kW Diesel Generator Technical Datasheets |
| Genset model | TG110WBS |
| Genset Type | Silent |
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V |
| Frequency | 50Hz |
| Speed | 1500rpm |
| P.F(COS) | P.F. 0.8 |
| Prime Output Current | 139.1A |
| Prime Power | 80kW / 100kVA |
| Standby Power | 88kW / 110kVA |
| Engine | Brand | Weichai Baudouin |
| Model | 4M10G110/5 |
| Alternator | Brand | Copy Stamford |
| Model | TGI274S80 |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Genset Weight | 1700kgs |
| Genset Dimensions | L2700 * W 1400 * 1600 |
| Baudouin Diesel Engine Data |
| Brand | Baudouin |
| Engine Model | 4M10G110/5 |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4-troke |
| Aspiration | Turbocharged & Aftercooled |
| Displacement | 4.1L |
| Compression ratio | 17.5:1 |
| Bore×Stroke | 105*118mm |
| Speed | 1500rpm |
| Prime Power | 90kW |
| Standby Power | 100kW |
| Speed Governor | MECH or Electrical |
| Cooling System | Forced water cooling cycle |
| Starting system | DC Motor |
| Fuel Consumption at 100% Load | 225g/kwh@1500rpm |
| Alternator Data |
| Brand | TECGEN |
| Model | TGI274S80 |
| Frequency/speed | 50HZ/1500RPM |
| Rate Output | 100kVA |
| No. of Phase | 3 Phase, 4 Wire |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Working Condition | Below 1000m |
| Bearing | Single |
| Coupling | Direct |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| DEIF Controller System |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Function | Auto Mains (Utility) Failure |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS & RS485 Connection |
| CAN Functions |
| Diesel Generator Output ranges & Brand Options |
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type |
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent |
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay |
| 16kW ~ 600kW | Deutz | Marathon | DEIF |
| 7kW ~ 64kW | Yangdong | Tecgen |
| 7kW ~ 76kW | Quanchai |
| 18kW ~ 3000kW | Weichai |
| 8kW ~ 800kW | SDEC |
| 12kW ~ 320kW | FAWDE |
| 18kW ~ 1200kW | Yuchai |
| 11kW ~ 104kW | Beinei Aircooled |
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA |
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar |
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson |
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp |
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn |
| 6kW ~ 2000kW | Chinese Engines | Smartgen |
Usage Scenarios
Whether you need a backup power source for your hospital, data center, or industrial facility, or a primary power solution for your remote off-grid location, the Baudouin 80kW Diesel Generator is your perfect choice. Its silent operation and compact design make it suitable for both indoor and outdoor installations, ensuring minimal disturbance to your surroundings.
Advantages Over Competitors
- Reliability: Backed by the renowned Baudouin engine and TECGEN alternator, this generator set offers unmatched reliability and durability.
- Efficiency: With a fuel consumption rate of 225g/kwh@1500rpm, it ensures maximum cost savings and environmental friendliness.
- Compact Design: The compact dimensions (L2700 * W1400 * H1600) and lightweight (1700kgs) make it easy to transport and install.
- Advanced Controls: The DEIF SGC-420 controller offers comprehensive monitoring and control capabilities, making it easier to manage and maintain the generator set.
Options for Customization
We offer a range of customization options to tailor the Baudouin 80kW Diesel Generator to your specific needs. Choose from different engine brands like Cummins, Weifang Ricardo, Deutz, and more, along with alternator options from Leroy Somer, Tecgen, Marathon, and others. Our controllers can also be customized with options from Mebay, DEIF, and DEEPSEA, ensuring seamless integration with your existing systems.
FAQs
Q: What is the fuel consumption rate of the Baudouin 80kW Diesel Generator?
A: The fuel consumption rate is 225g/kwh@1500rpm.
Q: Is the generator set suitable for indoor use?
A: Yes, the Baudouin 80kW Diesel Generator is designed for silent operation and can be used indoors without causing significant noise pollution.
Q: Can the generator set be customized with different engine and alternator brands?
A: Yes, we offer a range of customization options to tailor the generator set to your specific needs.
Q: What is the warranty period for the Baudouin 80kW Diesel Generator?
A: Please contact our customer service team for detailed warranty information.
In conclusion, the Baudouin 80kW Diesel Generator is a silent generator set that combines reliability, efficiency, and versatility in one compact package. Whether you need a backup power source or a primary power solution, this generator set is your perfect choice. Don't settle for anything less – choose the Baudouin 80kW Diesel Generator for silent, reliable, and efficient power generation.
