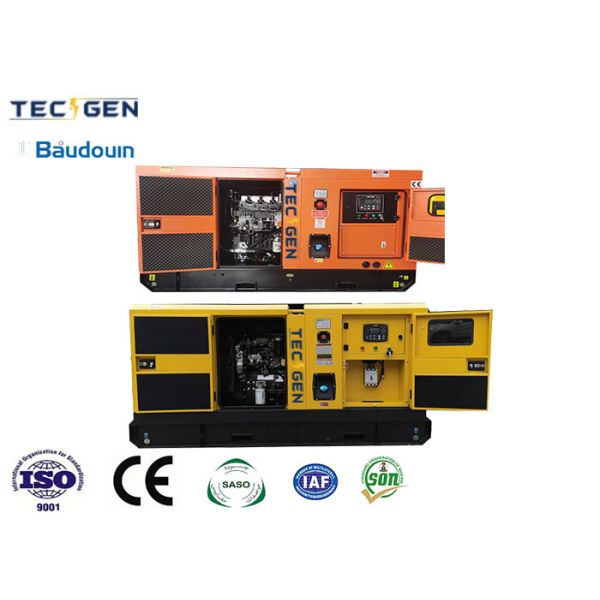

Baudouin 135kVA diesel generator soundproof genset powered by Baudouin 6 cylinder diesel engine
Standard Features:
Introducing the Baudouin 135kVA Diesel Generator, a powerhouse designed to meet your energy needs with unmatched reliability and efficiency. This state-of-the-art genset combines a robust Weichai Baudouin 6M11G150/5 engine with a Copy Stamford TGI274S108 alternator, all housed within a soundproof enclosure. Standard features include a 50Hz frequency, 1500rpm speed, and a power factor of 0.8, ensuring smooth and stable power output. With a prime power of 108kW and a standby power of 119kW, this generator is perfect for a wide range of applications.
Key Features:
- Soundproof Design: Engineered for minimal noise pollution, the Baudouin 135kVA Diesel Generator operates quietly, making it ideal for residential, commercial, and industrial settings where noise reduction is crucial.
- Powerful Engine: The Weichai Baudouin 6M11G150/5 engine boasts a displacement of 6.75L and a compression ratio of 17.5:1, delivering exceptional performance and durability.
- Advanced Alternator: The Copy Stamford TGI274S108 alternator provides a reliable power source with a rate output of 135kVA, ensuring consistent and clean energy for sensitive electronics and appliances.
- DEIF Controller: Equipped with the DEIF SGC-420 controller, this genset offers automated mains failure detection, emergency stop functionality, ATS & RS485 connections, and CAN functions for seamless integration into your power system.
- Compact and Lightweight: Despite its powerful capabilities, the Baudouin 135kVA Diesel Generator is designed to be compact and lightweight, with dimensions of L2850 * W1500 * H1650 and a weight of 1900kgs, making it easy to transport and install.
Baudouin 135kVA Diesel Generator Technical Specifications:
| Baudouin 135kVA Diesel Generator Technical Datasheets |
| Genset model | TG149WBS |
| Genset Type | Silent |
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V |
| Frequency | 50Hz |
| Speed | 1500rpm |
| P.F(COS) | P.F. 0.8 |
| Prime Output Current | 187.8A |
| Prime Power | 108kW / 135kVA |
| Standby Power | 119kW / 149kVA |
| Engine | Brand | Weichai Baudouin |
| Model | 6M11G150/5 |
| Alternator | Brand | Copy Stamford |
| Model | TGI274S108 |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Genset Weight | 1900kgs |
| Genset Dimensions | L2850 * W 1500 * 1650 |
| Baudouin Diesel Engine Data |
| Brand | Baudouin |
| Engine Model | 6M11G150/5 |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4-troke |
| Aspiration | Turbocharged & Aftercooled |
| Displacement | 6.75L |
| Compression ratio | 17.5:1 |
| Bore×Stroke | 105*118mm |
| Speed | 1500rpm |
| Prime Power | 128kW |
| Standby Power | 140kW |
| Speed Governor | Electrical |
| Cooling System | Forced water cooling cycle |
| Starting system | DC Motor |
| Fuel Consumption at 100% Load | 225g/kwh@1500rpm |
| Alternator Data |
| Brand | TECGEN |
| Model | TGI274S108 |
| Frequency/speed | 50HZ/1500RPM |
| Rate Output | 135kVA |
| No. of Phase | 3 Phase, 4 Wire |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Working Condition | Below 1000m |
| Bearing | Single |
| Coupling | Direct |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| DEIF Controller System |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Function | Auto Mains (Utility) Failure |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS & RS485 Connection |
| CAN Functions |
| Diesel Generator Output ranges & Brand Options |
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type |
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent |
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay |
| 16kW ~ 600kW | Deutz | Marathon | DEIF |
| 7kW ~ 64kW | Yangdong | Tecgen |
| 7kW ~ 76kW | Quanchai |
| 18kW ~ 3000kW | Weichai |
| 8kW ~ 800kW | SDEC |
| 12kW ~ 320kW | FAWDE |
| 18kW ~ 1200kW | Yuchai |
| 11kW ~ 104kW | Beinei Aircooled |
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA |
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar |
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson |
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp |
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn |
| 6kW ~ 2000kW | Chinese Engines | Smartgen |
Usage:
The Baudouin 135kVA Diesel Generator is versatile and can be used in various applications, including as a primary or backup power source for hospitals, hotels, offices, factories, and remote locations. Its soundproof design ensures that it can be used in noise-sensitive environments without disturbing nearby residents or workers.
Advantage:
- Quiet Operation: The soundproof enclosure significantly reduces noise levels, making the Baudouin 135kVA Diesel Generator one of the quietest gensets in its class.
- Fuel Efficiency: With a fuel consumption rate of 225g/kwh@1500rpm, this generator offers excellent fuel economy, reducing operational costs and environmental impact.
- Reliability: Built with high-quality components and rigorous testing, the Baudouin 135kVA Diesel Generator is designed to provide years of trouble-free service.
- Easy Maintenance: The user-friendly design and access to key components make maintenance and repairs quick and straightforward.
Option:
Customers have the flexibility to choose from a range of options and configurations to tailor the Baudouin 135kVA Diesel Generator to their specific needs. These include different engine brands and models, alternator brands, controllers, and more. With a wide range of power outputs available, from 17kW to 3000kW, there's a Baudouin generator to suit every application and budget.
FAQ:
- Is the Baudouin 135kVA Diesel Generator soundproof?
Yes, it is designed with a soundproof enclosure to minimize noise pollution. - What is the fuel consumption rate of this generator?
The fuel consumption rate is 225g/kwh@1500rpm. - Can I customize the Baudouin 135kVA Diesel Generator?
Yes, customers have the option to choose from various engine brands, alternators, controllers, and more to suit their specific needs. - What is the prime power and standby power of this generator?
The prime power is 108kW, and the standby power is 119kW. - How do I maintain the Baudouin 135kVA Diesel Generator?
Regular maintenance, such as checking oil levels, replacing filters, and inspecting belts and hoses, is recommended to ensure optimal performance and extend the generator's lifespan.
