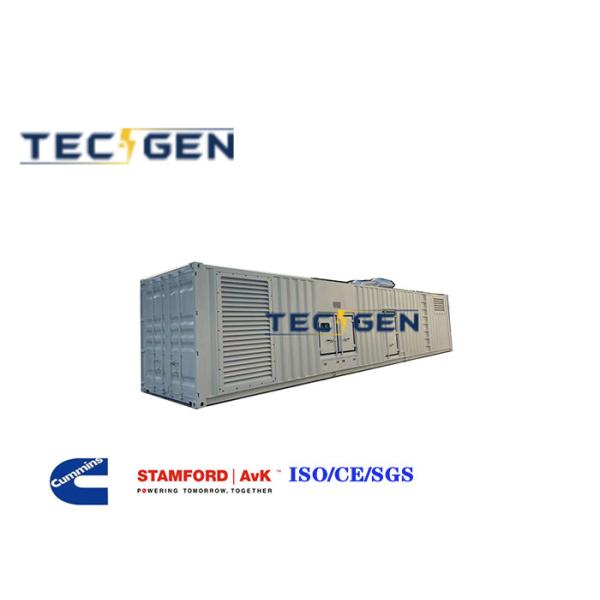

1340kW Cummins Diesel Generator With 40ft Container Canopy Powered By CCEC KTA50-G15X

Cummins 1340kW diesel generator with 40ft container canopy powered by CCEC KTA50-G15X

Genset Standard Configuration

1. Equipped with an authentic industrial CUMMINS water-cooled diesel engine.
2. Designed for exceptional silence, ensuring soundproofing and water resistance for reliable outdoor usage.
3. TECGEN POWER (Copy STAMFORD) alternator, made from 100% copper with a single bearing, offering insulation class H and IP23 protection. Other reputable brands are also available.
4. Standard circuit breaker from CHINT or DELIXI, with ABB as an optional choice.
5. Robust steel base fuel tank featuring anti-vibration mounting.
6. Built-in fuel tank with a minimum capacity of 8 hours, ensuring uninterrupted daily operation. Integrated-Fuel Tank option available.
7. Industrial-grade 9 dB muffler exhaust system, maintenance-free battery, and a comprehensive set of user manuals.
8. Flexible fuel lines, along with lube oil, water, and fuel drain cocks.
9. DEIF SGC-420 automatic start digital controller (imported brand) as the standard configuration.
10. Choice of standard shrink wrap packing or plywood box packing methods.

Genset Testing Items
TECGEN POWER offers a complete range of brand new, high-quality products.
Each unit undergoes rigorous factory testing prior to shipment.

1. Thorough testing of all parts for any faults.
2. Testing the fuel tank's ability to withstand pressure.
3. Verification of proper bolt tightening torque.
4. Measurement of painting thickness to ensure quality standards.
5. Rigorous testing of voltage bearing capacity and insulation properties.
6. Noise testing to guarantee low noise emissions.
7. Loading Testing: Testing at 25%, 50%, 75%, 100%, and 110% load to verify the functionality of control systems, alarms, and shutdown protection.

Genset Optional Supply

1. Weatherproof canopy / Soundproof canopy / Trailer-mounted options available.
2. Engine / Alternator Pre-heaters for enhanced performance in colder environments.
3. Auto load sharing & synchronization panel for seamless power distribution.
4. Built-in ATS (Auto start & stop Main Failure) for automatic start and stop during power outages.
5. Large 12/24-hour fuel tank options for extended operation.
6. Power output sockets for convenient access to power.
7. Integrated-fuel-tank solution for streamlined fuel storage.
8. Fuel-water separator for engine fuel quality protection.

CUMMINS GENERATOR SET TECHNICAL DATA:

Cummins Diesel Generator Set - Silent / Soundproof / Open / Trailer / Container Types
Safety, Stability, Economy and Reliable Power

1. Collaboration with renowned diesel engine manufacturers: Powered by engines from the USA, UK brands, Deutz, Ricardo, FAWDE, Yuchai, SDEC, Weichai, Yangdong, ISUZU, Mitsubishi, and more.
2. Option to choose from well-known brands of brushless alternators.
3. Equipped with a 50°C radiator with a fan, ensuring efficient engine cooling for prolonged operation.
4. Advanced generator set control system, offering options such as ATS system, remote control system, parallel operation system, and choice of control models like DEIF, Deepsea, Smartgen, ComAp.
5. Generator sets feature high-quality steel canopies with thickness ranging from 2mm to 6mm.
6. Soundproof models utilize high-density sound-absorbing materials for effective noise insulation and fireproofing.
7. Generators come with a 12V/24V DC battery and charger, along with battery connection wires.
8. Equipped with a 10-12 hours fuel tank with a fuel indicator, enabling extended operation.
9. Control box and power output box designed with high protection class standards, offering IP55 waterproofing, electric leakage protection, and breakers.
10. Innovative design with turn-back type air inflow and air outlet, reducing noise and improving engine efficiency.
11. Practical and aesthetically pleasing design, featuring bottom holes for forklift access and water and oil outlets for easy maintenance.
12. Double open doors on both sides of the gensets, providing convenient access for inspection and maintenance of engine and alternator components.
13. Comprehensive range of new designs available, including silent, super silent, soundproof, trailer type, and container type diesel generator sets.

Controller System

1. Standard AMF control panel with digital LED genset control models: SGC-420, HGM6120N, DSE7320, DSE6120, AMF20, AMF25.
2. Automatic transfer switch (ATS) and automatic parallel operation system.

Accessories
Standard accessories include a 50-degree radiator mounted on a skid, common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, standard tool kit, operation manual, and testing document.

FAQ

1. Cummins generator warranty period: Our Cummins generators come with a warranty period of 18 months or 1500 running hours, whichever comes first (excluding damageable spare parts caused by incorrect man-made operation).
2. Payment terms for portable generator: T/T with 20% advance payment, and the balance of 80% to be paid before shipment. Alternatively, irrevocable L/C at sight.
3. Delivery time for Cummins generator: Our standard delivery time is 10 to 20 days. Urgent orders can be accommodated with shorter delivery times based on requirements, while special orders may require longer delivery times.
4. Customization options for Cummins generator: Yes, our diesel generators can be customized according to detailed customer requirements. We cater to rental businesses, home use, industrial and army projects, power stations, etc. Our generators are suitable for indoor and outdoor use, as well as varying temperature environments.
5. Use of customer's logo: Yes, for bulk orders, we can incorporate the customer's logo instead of our own.
