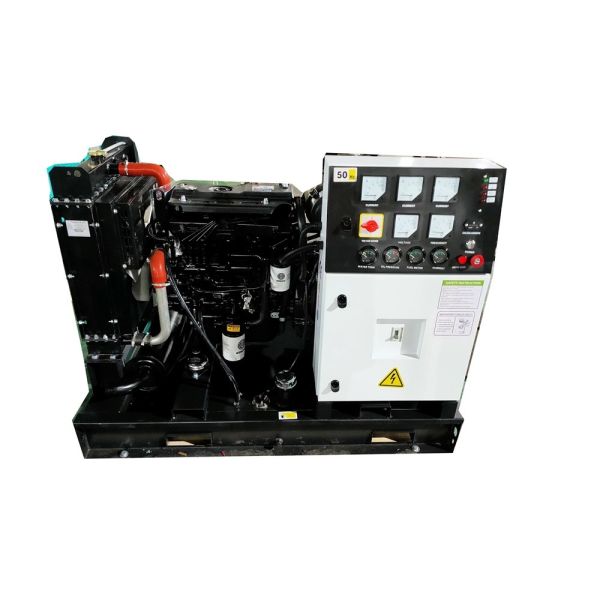

20kVA Perkins Generators Trusted Power Solutions 16kW Generator Set Couple with Stamford Brushless Alternator
16kW Perkins Power Generator Set Features:
1. Rated Power : 7kW - 1800kW
2. Frequency :50/60HZ
3. Speed :1500/1800rpm
4. Phase :3phase ; single phase
5. Voltage: 110V - 460V
6. Fuel tank : 8 hours
7. Silent Type Noise level : below 68db@7m
8. Environmental temperature : -5ºC ~ 50ºC
9. Water tank :50ºC environmental protection water tank
10. Diesel engine :Diesel , four stroke , water cooling
11. Alternator : brushless alternator /Stamford / Mecc alte / Leroy Somer / Marathon / Tecgen Copy Stamford
12. Controller : Deepsea / ComAp / Smartgen / DEIF DATAKOM
13. Leading time: Normal 15 days
14. Starting method : Manual or electronic , adjustable
15. Package : Plastic wrapping film
16. Export port : Fuzhou Port
17. Optional : ATS ,water heater , fuel heater, Alternator heater.
18. Electrical start system with maintain free battery & engine driven battery charger;
19. Residence silencer with flexible connections & elbow;
20. Full set of Test report, drawings & manuals include.
PERKINS GENERATORS TECHNICAL DATA:
| Technical Specification: |
| Generator Set Specification |
| Genset Model | TG22P | TG22PS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 380/220V |
| Phase | 3 Phase, 4 Wires |
| Rate Current | 30.4A |
| Prime Power (KW/KVA) | 16kW / 20kVA |
| Standby Power | 18kW / 22kW |
| Engine Model | Perkins 404A-22G1 |
| Alternator Model | Stamford PI 144D |
| Controller | ComAp AMF20 |
| Weight & Dimensions |
| Length (mm) | 1580 | 2250 |
| width (mm) | 810 | 860 |
| Height (mm) | 990 | 1150 |
| Weight (kgs) | 560 | 760 |
| Engine Specification |
| Brand | Perkins (Wuxi) |
| Engine Model | 404A-22G1 |
| Prime/Standby power (kw) | 18.7 / 20.6 |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 84 x 100 |
| Displacement (L) | 2.216 |
| Cooling | water |
| Compression Ratio | 23.3:1 |
| Engine Oil capacity (L) | 7 |
| Coolant Capacity ( In radiator) | 7 |
| Governor | MECH |
| Air Filter | Dry Element |
| Fuel consumption | @ 50Hz |
| 100% Load (L/h) | 5.1 |
| 75% Load (L/h) | 3.9 |
| 50% Load (L/h) | 2.6 |
| 25% Load (L/h) | 1.3 |
| Alternator Specification |
| Brand | Cummins Generator Technologies |
| Model | Stamford PI 144D |
| Rate Output (kVA) | 20 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | ComAp |
| Model | AMF20 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Engine System
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
*Machinery or electronic governing
*Fuel injection pump
*Electric motor starting system
*Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
*Low discharge, and low fuel consumption
*Installed conveniently and maintain easily
*Alternator system
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
*Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
*Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.
* Control system
Controller Brand: Deepsea , ComAp, Smartgen, DEIF DATAKOM, MEBAY
Control Panel: English interface, LED screen and touch buttons.
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge failure
*Emergency stop
^Warranty
Running 1500 hours / 18months from shipment (which comes first)
Improper operation and maintenance will not be covered by the warranty.
TECGEN Power: Where Your Power Needs Find Answers
Got questions about our diesel generators? We've got answers!
Q1: What's Your Power Range?
A: At TECGEN Power, we offer diesel generators spanning an impressive power range, from 8KVA all the way up to 3000KVA.
Q2: How Do You Package and Ship Your Generators?
A: Our generators are meticulously packaged using polywood or pearl cotton with an option for customized packaging. We employ the safest shipping methods, ensuring your order arrives in perfect condition.
Q3: How Fast Can I Get My Generator?
A: We understand the value of time. That's why our usual delivery time is swift, typically within 1-3 weeks.
Q4: What Are Your Payment Terms?
A: Our payment terms are flexible. We accept wire transfers (T/T) with a 30% advance payment, and the balance paid before shipment. Alternatively, you can opt for the convenience of a 100% letter of credit (LC) upon sight.
