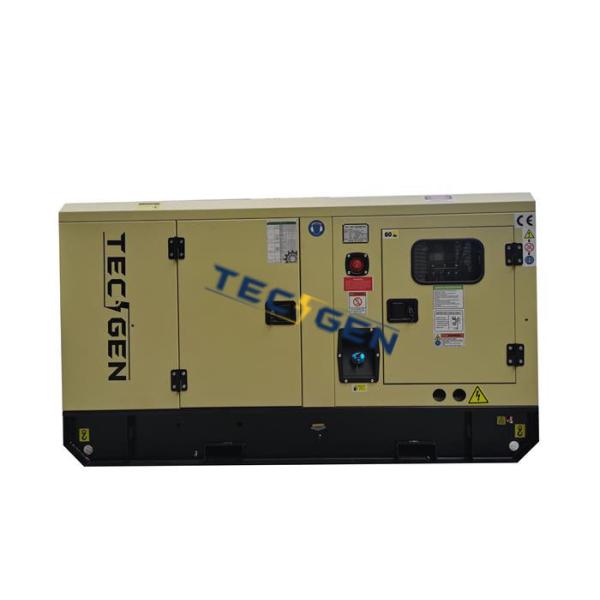

53kVA Perkins Diesel Generators 60Hz Soundproof Perkins Generator Set With Ats

  • 1
  • 2

Brand Name : Tecgen Power

Model Number : TG58PSD6

Certification : CE / SASO / SONCAP / COC / PVOC

Place of Origin : Fuzhou, China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 200 Units Per Month

Delivery Time : 15 Days

Packaging Details : Stretch film packaging or Polywooden Package

Product : Perkins Generator Set

Type : Soundproof

Frequency : 60Hz

Speed : 1800rpm

Engine Brand : Perkins

Engine Model : 1103A-33TG1

Alternator Model : TAL-A42-F

Genset Power : Prime 42kW / 53kVA

Contact Now

53kVA Perkins diesel generators 60Hz soundproof Perkins generator set with ats

Product Description: Perkins Diesel Generator Set - TG58PSD6

Standard Features:

  • Model: TG58PSD6, a silent type generator set designed for optimal performance and minimal noise output.
  • Voltage options: 440V, 415V, 400V, 380V, 230V, 220V, and 110V to cater to various power requirements.
  • Operating frequency: 60Hz, ensuring stable power output.
  • Engine speed: 1800rpm, maintaining efficient and reliable operation.
  • Power factor: 0.8, optimizing the generator's efficiency.

Key Features:

  • Perkins diesel engine: Reliable and durable, providing long-lasting power.
  • Leroy Somer alternator: High-quality alternator ensures stable and efficient power output.
  • DEIF controller: Automatic main failure detection and advanced control functions for seamless operation.
  • Silent design: Reduces noise levels, making it suitable for a wide range of applications.

53kVA Perkins Diesel Generators 60Hz Soundproof Perkins Generator Set With Ats

53kVA Soundproof Perkins Generator Set Specifications:

Soundproof Perkins Generator Set Technical Datasheets
Genset model TG58PSD6
Genset Type Silent
Rate Voltage 440V//415V/400V/380V/230V/220V/110V
Frequency 60Hz
Speed 1800rpm
P.F(COS) P.F. 0.8
Prime Output Current 69.5A
Prime Power 42kW / 53kVA
Standby Power 46kW / 58kVA
Engine Brand Perkins
Model 1103A-33TG1
Alternator Brand Leroy Somer
Model TAL-A42-F
Controller Brand DEIF
Model SGC-420
Genset Weight 1300kgs
Genset Dimensions L2250 * W 1050 * 1300
Perkins Diesel Engine Data
Brand Perkins
Engine Model 1103A-33TG1
Number of Cylinders 3 Cylinder in Line
Cycle 4-troke
Aspiration Turbocharged
Displacement 3.3L
Compression ratio 17.25:1
Bore×Stroke 105*127mm
Speed 1800rpm
Prime Power 50.5kW
Standby Power 55.6kW
Speed Governor Electrical
Cooling System Forced water cooling cycle
Starting system DC Motor
Fuel Consumption at 100% Load 210g/kwh@1800rpm
Leroy Somer Alternator Data
Brand Leroy Somer
Model TAL-A42-F
Frequency/speed 60HZ/1800RPM
Rate Output 42kw
No. of Phase 3 Phase, 4 Wire or 12 Wire
Exciter type Single bearing, Brushless, Self-excited with AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23
Working Condition Below 1000m
Bearing Single
Coupling Direct
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
DEIF Controller System
Controller Brand DEIF
Model SGC-420
Function Auto Mains (Utility) Failure
Static with auto. battery charger
Emergency stop push button
ATS & RS485 Connection
CAN Functions
Diesel Generator Output ranges & Brand Options
Prime Power (kW) Diesel Engine AC Alternator Controller Type
17kW ~ 1260kW Cummins Leroy Somer DEIF Open/Silent
10kW ~ 300kW Weifang Ricardo Tecgen Mebay
16kW ~ 600kW Deutz Marathon DEIF
7kW ~ 64kW Yangdong

Tecgen
7kW ~ 76kW Quanchai
18kW ~ 3000kW Weichai
8kW ~ 800kW SDEC
12kW ~ 320kW FAWDE
18kW ~ 1200kW Yuchai
11kW ~ 104kW Beinei Aircooled
7kW ~ 1800kW Perkins Stamford DEEPSEA
6.8kW ~ 2000kW Caterpillar Caterpillar Caterpillar
6.8kW ~ 2000kW FG Wilson FG Wilson FG Wilson
17kW ~ 30kW Isuzu Mecc Alte ComAp
210kW ~ 818kW VMAN Tecgen Tecegn
6kW ~ 2000kW Chinese Engines Smartgen

Usage:

The Perkins diesel generator set is suitable for a variety of applications, including industrial, commercial, and residential use. It can be used as a primary or standby power source to ensure uninterrupted power supply in case of power outages or failures.

53kVA Perkins Diesel Generators 60Hz Soundproof Perkins Generator Set With Ats

Advantages:

  • High power output: Up to 42kW prime power and 46kW standby power, satisfying most power needs.
  • Turbocharged engine: Delivers maximum performance and efficiency.
  • Forced water cooling system: Ensures optimal engine temperature for longer lifespan.
  • Easy to maintain: User-friendly design and access to critical components make maintenance a breeze.

Options:

Customers can choose from a range of options, including different voltage configurations, additional protection features, and customization options to suit their specific needs.

FAQ:

  • Q: What is the warranty period for the Perkins diesel generator set?
    A: The warranty period depends on the specific agreement and can be negotiated with our sales team.
  • Q: Is it possible to customize the generator set to meet my specific requirements?
    A: Yes, we offer customization options to suit your unique needs. Please contact our sales team for more details.
  • Q: How noisy is the silent type generator set?
    A: The silent design significantly reduces noise levels, making it suitable for most environments. Exact noise levels can be provided upon request.
