3 Cylinders 9kVA Perkins Diesel Generator Silent Genset Powered By Perkins Engine

Product Categories
FUJIAN TECGEN POWER CO., LTD.
Contact Now

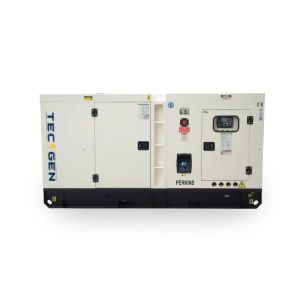

3 Cylinders 9kVA Perkins Diesel Generator Silent Genset Powered By Perkins Engine

  • 1
  • 2

Brand Name : Tecgen Power

Model Number : TG10PS

Certification : CE / SASO / SONCAP / COC / PVOC

Place of Origin : Fuzhou, China

MOQ : 1 unit

Price : 3937$ - 4355$

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 200 Units Per Month

Delivery Time : 7 - 15 Working Days

Packaging Details : Stretch film packaging

Type : Silent Type

Engine Brand : Perkins

Engine model : 403D-11G

Alternator brand : Stamford

Alternator model : PI 044E

Voltage : 220 / 380V

Frequency : 50Hz

Prime power : 7kW / 9kVA

Contact Now

3 Cylinders 9kVA Perkins diesel generator silent genset powered by Perkins engine

Our 3 Cylinders 9kVA Perkins Diesel Generator is a robust and reliable solution for backup power needs. It comes standard with a Perkins 403D-11G engine, a Stamford PI 044E alternator, and a DEIF SGC-420 controller. The Perkins diesel generator offers a rated output of 9kVA, perfect for various applications.

Key Features

  • Powerful Engine: The Perkins 403D-11G engine with 3 cylinders delivers consistent and reliable power.
  • Efficient Alternator: The Stamford PI 044E alternator converts engine power into stable electrical output efficiently.
  • Advanced Controller: The DEIF SGC-420 controller provides advanced monitoring and protection features.
  • Compact Design: With a compact size of L1900 * W7320 * H1100mm, it is easy to transport and install.

3 Cylinders 9kVA Perkins Diesel Generator Silent Genset Powered By Perkins Engine

3 Cylinders 9kVA Perkins Diesel Generator Specifications:

3 Cylinders 9kVA Perkins Diesel Generator Specifications
Model Engine Alternator Controller Output
TG10PS 403D-11G PI 044E DEIF SGC-420 9kVA

Remark:

(1) Payment Terms: FOB Fuzhou Port

(2) Delivery: 15 working days

(3) Payment method: 30% deposit, 70% before delivery

(4) Price Valid time: 30 Days

(5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
General Date of 9kVA Perkins Land-based Diesel Generator Set
Engine Model 403D-11G
Alternator Mode PI 044E
Rated Output 7kW / 9kVA
Rated Speed 1500 RPM
Frequency 50 HZ
Rated Voltage 220 / 380V
Rated Current 13.7A
Breaker 63A Aisikai Breaker
Power Factor 0.8
Genset Phase 3 phase, 4 – wire connection
Fuel Tank 8 running hours
Noise level dB(A) @7m 70dB(A)
Net Weight 570KGS
Genset size L1900 * W7320 * H1100mm
Voltage regulation rate ≤±1%
Random voltage variation ≤±1%
Frequency regulation rate ≤±5%
Random frequency variation ≤±0.5%
General specification of Engine for 9kVA Perkins Land-based Diesel Generator Set
Manufacture Perkins (Wuxi)
Model 403D-11G
Rated Output/Speed 8.6KW/1500RPM
Standby Output/Speed 9.5KW/1500RPM
Aspiration Naturally aspirated
Speed Governor MECH or Electric
Engine Type 3 cylinders in line
Bore X Stroke 77*81mm
Displacement 1.131 L
Compression ratio 23:1
Cooling system Forced Water Cooling Cycle
Rated speed 1500rpm
Fuel Consumption/rated output 2.6 L / h
Fuel Consumption/standby output 2.9 L / h
Starter motor D.C. 24V Electric starting
Alternator (Dynamo) AC24V
General data of Alternator for 9kVA Perkins Land-based Diesel Generator Set
Alternator Model PI 044E
Manufacture Stamford
Rate Output 10kVA
Rated voltage(V) 220 / 380V
Voltage regulation AVR ± 1.0 %
Working Altitude ≤1000
Control System Brushless Self Excited
Bearing Single Bearing
Insulation System Class H
Protection IP23
Power factor 0.8
Winding connection 3 phase, 4 – wire connection
Standard configuration of 9kVA Perkins Land-based Diesel Generator Set
Aluminum water tank 50℃
Controller Panel DEIF SGC-420
Battery Varta Maintenance free Battery
Silencer Included
Dry type air filter, fuel filter, oil filter
24V D.C automatic battery charger
Max. 50 degree celsius radiator
Batteries, rack and cable
Ripple flex exhaust pipe, flange and muffler

Usage

The 3 Cylinders 9kVA Perkins Diesel Generator is suitable for a wide range of applications, including backup power for homes, businesses, construction sites, and events. It can provide stable and reliable power during power outages or emergencies.

3 Cylinders 9kVA Perkins Diesel Generator Silent Genset Powered By Perkins Engine

Advantages

  • Reliability: Built with high-quality components, it ensures reliable and dependable operation.
  • Efficiency: The efficient engine and alternator provide optimal fuel economy and low maintenance costs.
  • Ease of Use: With simple controls and automatic functions, it is easy to operate and maintain.
  • Low Noise: The Perkins diesel generator operates at a low noise level of 70dB(A) @ 7m, making it suitable for both indoor and outdoor use.

Options

Customize your Perkins diesel generator with the following options:

  • Integrated Fuel Tank
  • Water Heater
  • ATS (Automatic Transfer Switch)
  • PMG Generator
  • SYNC Function
  • 12/24 Hours Fuel Tank
  • 3000 hours Spare Parts

FAQs

  • Q: What is the noise level of this Perkins generator?
    A: The noise level is 70dB(A) @ 7m, making it suitable for most applications.
  • Q: How long does it take to deliver the Perkins Diesel Generator?
    A: Delivery time is typically 15 working days.
  • Q: What is the voltage regulation rate?
    A: The voltage regulation rate is ≤±1%, ensuring stable output voltage.
