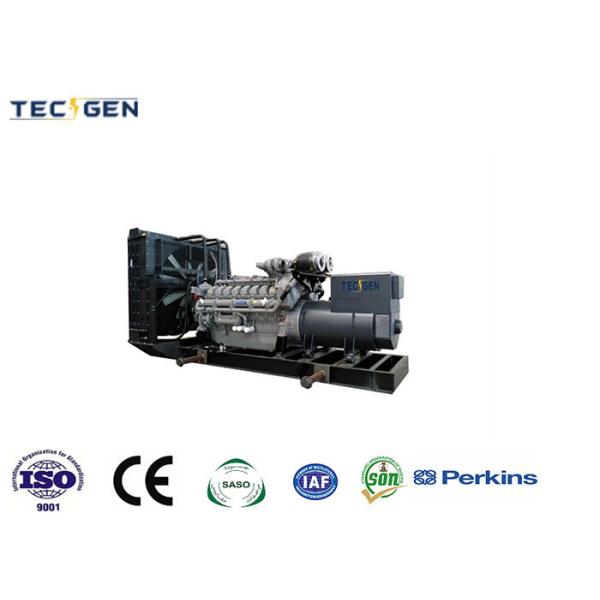

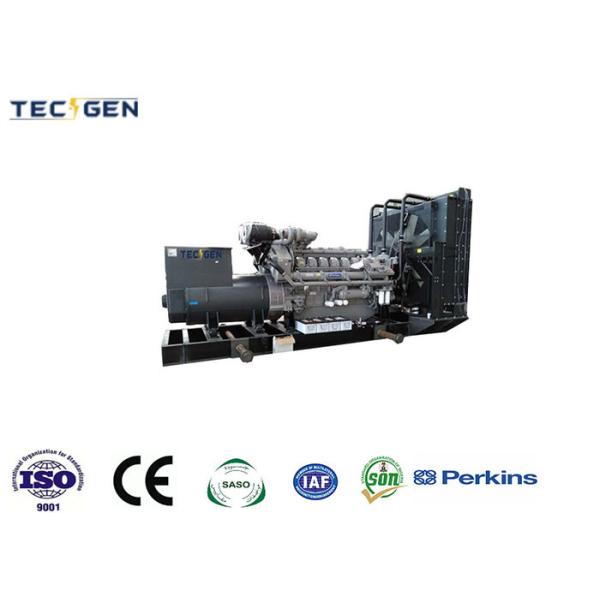

Heavy Duty Perkins Genset 1800kW Perkins diesel generator with 12 cylinder diesel engine
Introducing our high-performance 1800kW Heavy Duty Perkins Genset, a reliable and efficient power solution for your industrial needs. With its exceptional features and robust construction, this genset is designed to deliver superior performance and durability.
Standard Features:
- Genset Type: Open Frame
- Rate Voltage: 440V//415V/400V/380V/230V/220V/110V
- Frequency: 50Hz
- Speed: 1500rpm
- Power Factor (P.F.): 0.8
Key Features:
- Powerful Perkins Engine: The Perkins 4016-61TRG3 engine provides unmatched performance and reliability for your power generation requirements.
- Stable Power Output: Equipped with a high-quality Copy Stamford TGI454S1800 alternator, this genset ensures stable and reliable power delivery.
- Advanced DEIF Controller: The DEIF SGC-420 controller offers seamless integration and reliable operation, allowing for precise control and monitoring of the genset.
- Robust Construction: Built with durable materials and advanced engineering, this genset is designed to withstand demanding operating conditions, ensuring long-term reliability.
- Fuel Efficiency: The turbocharged Perkins engine, combined with advanced controls, optimizes fuel consumption, reducing operational costs and environmental impact.
1800kW Heavy Duty Perkins Genset Datasheets:
| 1800kW Heavy Duty Perkins Genset Technical Datasheets |
| Genset model | TG2475P |
| Genset Type | Open Frame |
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V |
| Frequency | 50Hz |
| Speed | 1500rpm |
| P.F(COS) | P.F. 0.8 |
| Prime Output Current | 3130.0A |
| Prime Power | 1800kW / 2250kVA |
| Standby Power | 1980kW / 2475kVA |
| Engine | Brand | Perkins |
| Model | 4016-61TRG3 |
| Alternator | Brand | Copy Stamford |
| Model | TGI454S1800 |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Genset Weight | 13280kgs |
| Genset Dimensions | L6060 * W 2300 * 2400 |
| Perkins Diesel Engine Data |
| Brand | Perkins |
| Engine Model | 4016-61TRG3 |
| Number of Cylinders | 16 Cylinder, 60° Vee |
| Cycle | 4-troke |
| Aspiration | turbocharged, air to water charge cooled |
| Displacement | 61.123L |
| Compression ratio | 13:1 |
| Bore×Stroke | 160*190mm |
| Speed | 1500rpm |
| Prime Power | 1975kW |
| Standby Power | 2183kW |
| Speed Governor | Electrical |
| Cooling System | Forced water cooling cycle |
| Starting system | DC Motor |
| Fuel Consumption at 100% Load | 205g/kwh@1500rpm |
| Copy Stamford Alternator Data |
| Brand | Copy Stamford |
| Model | TGI454S1800 |
| Frequency/speed | 50HZ/1500RPM |
| Rate Output | 1800kW |
| No. of Phase | 3 Phase, 4 Wire |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Working Condition | Below 1000m |
| Bearing | Single |
| Coupling | Direct |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| DEIF Controller System |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Function | Auto Mains (Utility) Failure |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS & RS485 Connection |
| CAN Functions |
| Diesel Generator Output ranges & Brand Options |
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type |
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent |
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay |
| 16kW ~ 600kW | Deutz | Marathon | DEIF |
| 7kW ~ 64kW | Yangdong | Tecgen |
| 7kW ~ 76kW | Quanchai |
| 18kW ~ 3000kW | Weichai |
| 8kW ~ 800kW | SDEC |
| 12kW ~ 320kW | FAWDE |
| 18kW ~ 1200kW | Yuchai |
| 11kW ~ 104kW | Beinei Aircooled |
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA |
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar |
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson |
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp |
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn |
| 6kW ~ 2000kW | Chinese Engines | Smartgen |
Usage:
The 1800kW Heavy Duty Perkins Genset is ideal for a wide range of industrial applications, including manufacturing plants, data centers, and large-scale commercial buildings. It provides reliable prime power and standby power solutions to meet your specific requirements.
Advantages:
- High Power Output: With a prime power output of 1800kW, this genset delivers ample power to support your critical operations, ensuring uninterrupted productivity.
- Reliable Performance: The Perkins engine, known for its reliability, combined with the Copy Stamford alternator, ensures consistent and dependable power generation.
- Fuel Efficiency: The optimized fuel consumption of the Perkins engine reduces operating costs and promotes energy efficiency.
- Robust Design: The rugged construction and efficient cooling system enable the genset to operate reliably even in harsh environments, minimizing downtime.
- Trusted Brand: Perkins is globally recognized for its dependable engines, providing peace of mind for your power needs.
Options:
We offer various options to customize the genset according to your specific requirements. These options include soundproof enclosures, automatic transfer switches (ATS), and remote monitoring capabilities. Tailoring the genset to your needs ensures optimal performance and convenience.
Frequently Asked Questions (FAQ):
Q: What is the power output of this genset?
A: The 1800kW Heavy Duty Perkins Genset delivers a prime power output of 1800kW and a standby power output of 1980kW.
Q: How fuel-efficient is the Perkins engine?
A: The Perkins 4016-61TRG3 engine offers excellent fuel efficiency, optimizing operational costs and reducing environmental impact.
Q: Can this genset handle heavy loads?
A: Yes, with a prime output current of 3130.0A, this genset is capable of handling heavy and fluctuating loads with ease, ensuring consistent power supply.
In summary, our 1800kW Heavy Duty Perkins Genset is a reliable and efficient power solution for your industrial needs. With its powerful Perkins engine, stable power output, and advanced controls, this genset ensures uninterrupted power supply and long-term reliability. Choose our genset to power your critical operations and experience the performance and durability that Perkins is renowned for. Contact us now to discuss your power requirements and find the perfect solution tailored to your needs.
