Low noise ultrasonic generators three phase ultra silent diesel generator 22kVA prime

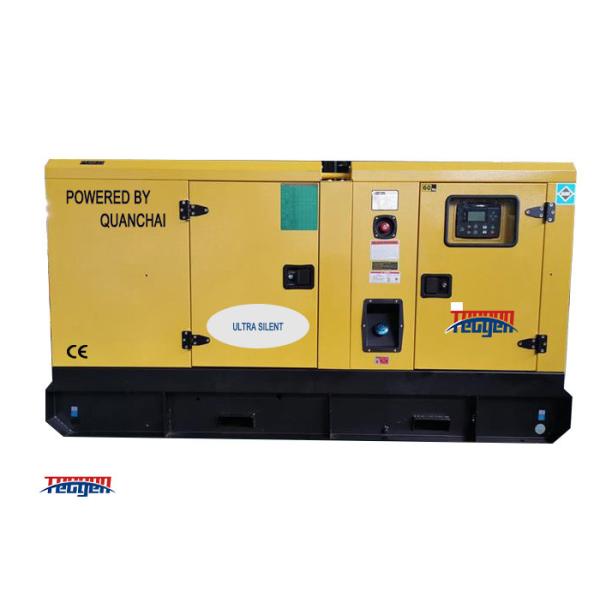

Product Description: Ultra Silent Diesel Genset with Ultrasonic Generators
Standard Features:
Our ultra silent diesel genset is designed with the latest technology, boasting a rated output of 18kW / 22kVA and a standby output of 20kW / 25kVA. Operating at a standard frequency of 50Hz and a rated voltage of 240/415V, it ensures a stable and reliable power supply for various applications. The three-phase output with a power factor of 0.8 ensures maximum efficiency.
Key Features:
- Ultra-Silent Operation: The genset is equipped with advanced noise reduction technology, making it ultra-silent and suitable for noise-sensitive environments.
- Ultrasonic Generators: Featuring ultrasonic generators, the genset provides clean and stable power output, minimizing any potential fluctuations.
- High Efficiency: With an efficiency rating of 92.50%, the alternator ensures maximum power output with minimal energy loss.
- Durable Construction: The diesel engine, made by Quanchai, is known for its durability and reliability, ensuring long-term performance.
22kVA Ultrasonic Generators Specifications:
| QUANCHAI Diesel Generator Set Datasheet |
| Genset Model | TG25QCS |
| Rated Output | 18kW / 22kVA |
| Standby Output | 20kW / 25kVA |
| Frequency | 50Hz |
| Rated Voltage | 240/415V |
| Output Type | Three Phase, 0.8 |
| Rated Current (A) | 30.6A |
| Dimension (mm) | L2000 x W900 x H1000 |
| Gross Weight (kg) | 750 |
| Diesel Engine | Brand | Quanchai |
| Model | QC490D |
| Configuration | Four-stroke,Water-cooling,Direct Injection |
| Rated Power | 24kW |
| Rated Speed (rpm) | 1500rpm |
| Cylinder No. | 4 |
| Bore*Stroke (mm) | 90 x 105 |
| Displacement(L) | 2.67 |
| Intake | Natural Intake |
| Oil Consumption (g/Kw*h) | 230@100% load |
| Starting method | 24V DC |
| Alternator | Brand | Tecgen |
| Model | TGI184S18 |
| Rated Power | 17kW |
| Materials | 100% pure copper |
| Efficiency | 92.50% |
| Voltage Regulation | <=±1 |
| Voltage Regulation | Brushless, Self-excitation |
| Insulation Class | H |
| Option brands | Stamford / Leroy Somer / Meccalte |
| Control System | Brand | DEIF |
| Model | SGC-420 |
| Working Voltage | DC8.0V to DC35.0V, continuous |
| Overall Dimensions (mm) | 233*38.5*173 |
| Panel Cutout (mm) | 219*158 |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 |
| Functions | AMF/ATS |
| RS485 & CAN communication |
| 9 Inlet & 7 Outlet |
| PLC & BTN |
| Protections | Under-speed |
| Over-speed |
| Configurable crank connect |
| Battery monitoring |
| Charging alternator |
| Pre-heat |
| Coolant temperature |
| Lube oil pressure |
| Fuel level detection |
| Fuel theft detection |
| ECU communication failure |
| ECU diagnostic lamp |
| Option brands | Deepsea / Smartgen / ComAp / Mebay |
| Genset option equipment |
| Integrated-Fuel-Tank | ATS Box / Cabinet |
| PMG Alternator | Sync Panel |
| Trailer Type | Engine Heater |
| Water Heater | Fuel – Water Separator |
| Maintenance Timetable of Diesel Generating Set |
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours |
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Level of engine oil | √ | √ | √ | √ | √ |
| Replace | Oil Filter | | | | √ | √ |
| Engine Olil | | | | √ | √ |
| Clean | Crankcase box | | | | √ | √ |
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Radiator Block | | | √ | √ | √ |
| Soft Tube and Joint | | | √ | √ | √ |
| Fluid | | √ | √ | √ | √ |
| Antifreeze and Anticorrosion | | | √ | √ | √ |
| Belt Status | | | | √ | √ |
| Add Grease lubricant | Fan and Tensing | | | | √ | √ |
| Belt wheel | | | | √ | √ |
| Check | Driving Belt wheel and pump | | | | √ | √ |
| Replace | Cooling Liquid | Every 12 months |
| Clean | Cooling System |
| Airflow System | Check | Oil Gas | | | √ | √ | √ |
| Cleaner | | √ | √ | √ | √ |
| Pipe Fittings and Joint | | | | √ | √ |
| Replace | Core of Air Cleaner | | | | | √ |
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ |
| Quality of Fuel | | √ | √ | √ | √ |
| Pump Nozzle | | | | | √ |
| Fuel pipe and Joint | | | | √ | √ |
| Oil Pump | | | √ | √ | √ |
| Discharged | Deposition of Fuel Tank | | | √ | √ | √ |
| Replace | Filter of oil | | | | √ | √ |
| Check | Nozzle | Every Two Years |
| Adjust | Value | | | | | √ |
Usage:
Our ultra silent diesel genset is ideal for a wide range of applications, including but not limited to hospitals, data centers, construction sites, and other critical facilities that require a reliable and quiet power source.
Advantages:
- Versatile: With its multiple output options and configurations, the genset can be tailored to meet specific power requirements.
- Easy to Maintain: The genset is designed for easy maintenance, with accessible components and a user-friendly control system.
- Eco-Friendly: The diesel engine meets strict emission standards, making it an environmentally friendly choice.
- Comprehensive Protection: The control system offers a range of protections, including under-speed, over-speed, and fuel theft detection, ensuring the safety of the genset.
Options:
We offer a variety of optional equipment and accessories to enhance the functionality and performance of our ultra silent diesel genset. These include integrated fuel tanks, ATS boxes/cabinets, PMG alternators, sync panels, and more.
FAQ:
- Q: How noisy is the genset?
A: Our genset is designed to be ultra-silent, making it suitable for noise-sensitive environments. - Q: What is the efficiency rating of the alternator?
A: The alternator has an efficiency rating of 92.50%, ensuring maximum power output with minimal energy loss. - Q: Can the genset be customized to meet specific power requirements?
A: Yes, our genset offers multiple output options and configurations, allowing it to be tailored to meet specific power requirements.
