90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS

Product Categories
FUJIAN TECGEN POWER CO., LTD.
Contact Now

90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS

  • 1
  • 2
  • 3

Brand Name : Tecgen Power

Model Number : TG124DES

Certification : CE

Place of Origin : Fuzhou, China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 200 Units Per Month

Delivery Time : 7 - 15 Working Days

Packaging Details : Stretch film packaging

Type of Unit : Silent

Frequency : 50Hz

Rate Speed : 1500rpm

Voltage : 240/415V

Noise level (7m) : 70db(A)

Engine : Deutz BF4M1013EC G2

Alternator : Stamford UCI 274D

Prime Genset Output : 90kW/113kVA

Contact Now

90kW Diesel generator 113kVA deutz diesel generator set silent type with built-in ATS

Product Description

Introducing the 113kVA Deutz Silent Diesel Generator Set, a robust and reliable power solution for your industrial and commercial needs. With its triple-phase output, 50Hz frequency, and 240/415V voltage, it ensures smooth and efficient power delivery.

Key Features

  • Powerful Performance: Delivering a prime power of 90kW/113kVA and a standby power of 99kW/124kVA, it handles heavy loads with ease.
  • Silent Operation: Specially designed for outdoor use, its silent features minimize noise output, making it suitable for noise-sensitive environments.
  • Advanced Controller: Equipped with a DEIF SGC-420 controller, it offers precise and reliable generator control.

Standard Features

  • Efficient Engine: Powered by the BF4M1013EC G2 engine, it ensures smooth and consistent performance.
  • High-Quality Generator: The Stamford UCI 274D generator ensures dependable power output.
  • Electronic Speed Control: For precise adjustment of generator speed.
  • Durable Components: Includes a 50-degree water tank, 24V maintenance-free lead-acid battery, battery rack, and an 8-hour running fuel tank.

90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS

90kW Deutz Diesel Genset Technical Specifications:

Technical Parameter for Deutz Diesel Generator Genset Model TG124DES
Prime Power 90kW/113kVA
Standby Power 99kW/124kVA
Frequency 50Hz
Rated Voltage 240/415V
Power Factor 0.8
Governor Electric
Noise level (7m) 70db(A)
Engine Brand Deutz
Engine Model BF4M1013EC G2
Alternator Brand Stamford
Alternator model UCI 274D
Dimension Open: L2200 x W900 x H1200mm
Silent: L3000 x W1100 x H1500
Fuel Tank Capacity 190L
Deutz Engine General Data Engine Brand Deutz
Engine Model BF4M1013EC G2
Rated Output 97kW
Rated Speed 1500rpm
Number of Cylinders 4
Cylinder arrangement In-line
Displacement (L) 4.76
Aspiration Turbocharged & CAC
Bore×Stroke (mm×mm) 108x130
Compression Ratio 19:1
Cooling Forced Water Cooled
Fuel Consumption at 100% load(L/H) 23.8
Stamford Alternator Data Model UCI 274D
Brand Stamford
Rate Output 91.2kW
Frequency 50Hz
Altitude ≤1000
Insulation Class H
Bearing Single
Voltage Regulator AVR
Protection Grade IP 23
Steady StateVoltage Regulater 1%
Opetion Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator

Control System

 Brand DEEPSEA
Model DSE6120
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS & RS485 Connection
Optional brands Deepsea, ComAp, Mebay
Battery Capacity 12/24V Varta Maintenance free Battery
Cooling System Water-cooled, 50℃ radiator with Cooper
Circuit breaker Delixi Brand 2000A Breaker
Auto Transfer Switch 2000A ATS Cabinet
Deutz Genset Options Output Socket
Integrated Fuel Tank Canopy for Genset
Sync Panel
Water Heater & Engine Heater
Engine Brand Options
Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine

90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS

Options

  • ATS (Automatic Transfer Switch): For seamless power transition during power outages.
  • Built-In Fuel Tank: Convenient storage for extended operation.
  • Water Jacket Heater: Ensures efficient engine start-up in cold conditions.
  • Oil-Water Separator: Improving fuel efficiency and extending engine lifespan.
  • Output Switch: For easy control of power output.
  • 3000-Hour Spare Parts Kit: Ensuring uninterrupted operation with timely replacements.

FAQ?

Q: What is the standby power rating of this generator set?
A: The standby power rating is 99kW/124kVA.

Q: Does this generator set come with a controller?
A: Yes, it is equipped with a DEIF SGC-420 controller for precise and reliable generator control.

Q: Can I add a water jacket heater to this generator set?
A: Yes, a water jacket heater is an optional extra that can be added for efficient engine start-up in cold conditions.


Product Tags:

built-in ATS 90kW diesel generator



silent 90kW diesel generator



113kVA 90kW diesel generator


Wholesale 90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS from china suppliers

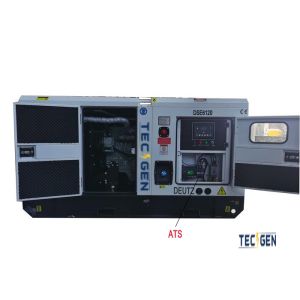

90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS Images
