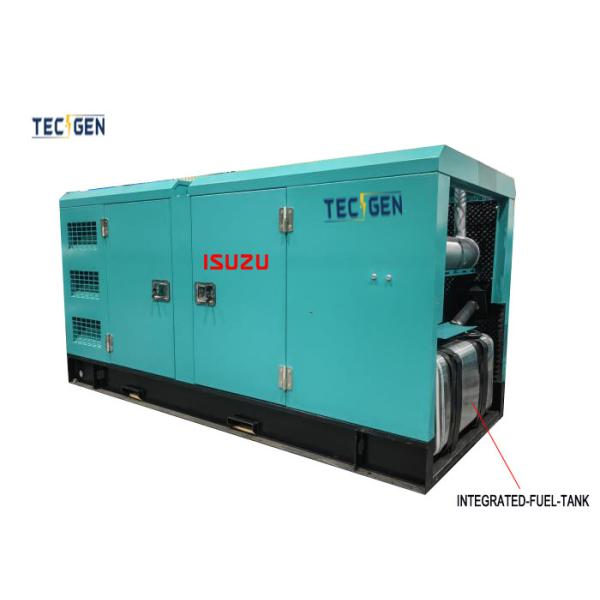

Silent diesel generator 30kW Isuzu diesel generator with integrated-fuel-tank
Introducing the Silent Diesel Generator by ISUZU - a reliable power solution for various applications. With its exceptional features and quality engineering, this generator is designed to meet your electricity needs efficiently and quietly. Discover the key points of this remarkable product:
Standard Features:
- Power Output: 30kW/38kVA (Prime) and 33kW/41kVA (Standby)
- Engine Model: ISUZU JE493ZLDB-02, 4-cylinder, turbocharged, intercooled
- Generator Model: S1L2-N1
- Voltage: 240/415V (Customizable to various options)
- Frequency: 50Hz
- Speed: 1500rpm
- DEIF SGC-420 multifunctional controller
- Mechanical or electronic speed regulation
- Maintenance-free 24V lead-acid battery with battery rack
- Integrated fuel tank for 8 hours of continuous operation
- Corrosion-resistant design, suitable for coastal and humid environments
- Delixi or CHNT circuit breakers
- Industrial-grade silencer for noise reduction
- Forklift holes for easy transportation
- Optional configurations: Built-in ATS or wall-mounted ATS box
- Super silent operation
- 24-hour fuel tank
- Remote monitoring and start
- Oil-water separator
- Water jacket heater
- Output switch
- Parallel operation capability
- 3000-hour spare parts
- 18-month or 1500-hour after-sales service
- Optional engine brands: SDEC, Yuchai, Doosan, Shanghai Engine, VMAN, Wudong, Googol, CAT, Perkins, Deutz Cummins, and more
- Optional generator brands: Stamford, Leroy Somer, Meccalte, Marathon
- Available in open, silent, containerized silent, and trailer-mounted silent configurations
- Production capacity: 2000 units per year
30kW Isuzu Diesel Generator Technical Specifications:
| 30kW ISUZU Diesel Generator Technical Datasheets |
| Genset model | TG41JIS |
| Genset Type | Silent / Super Silent |
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V |
| Frequency | 50Hz |
| Speed | 1500rpm |
| P.F(COS) | P.F. 0.8 |
| Prime Output Current | 52.2A |
| Prime Power | 30kW / 38kVA |
| Standby Power | 33kW / 41kVA |
| Engine | Brand | ISUZU |
| Model | JE493ZLDB-02 |
| Alternator | Brand | Stamford |
| Model | S1L2-N1 |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Genset Weight | 730kgs |
| Genset Dimensions | L2150 * W 880 * 1150 |
| ISUZU Diesel Engine Data |
| Brand | Isuzu |
| Engine Model | JE493ZLDB-02 |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4-troke |
| Aspiration | Turbocharged & Intercooled |
| Displacement | 2.771L |
| Compression ratio | 18.2L |
| Bore×Stroke | 93*102mm |
| Speed | 1500rpm |
| Prime Power | 38kW |
| Standby Power | 42kW |
| Speed Governor | MECH or Electrical |
| Cooling System | Forced water cooling cycle |
| Starting system | DC Motor |
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm |
| Stamford Alternator Data |
| Brand | Stamford |
| Model | S1L2-N1 |
| Frequency/speed | 50HZ/1500RPM |
| Rate Output | 41kVA |
| No. of Phase | 3 Phase, 4 Wire |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Working Condition | Below 1000m |
| Bearing | Single |
| Coupling | Direct |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| DEIF Controller System |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Function | Auto Mains (Utility) Failure |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS & RS485 Connection |
| CAN Functions |
| Diesel Generator Output ranges & Brand Options |
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type |
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent |
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay |
| 16kW ~ 600kW | Deutz | Marathon | DEIF |
| 7kW ~ 64kW | Yangdong | Tecgen |
| 7kW ~ 76kW | Quanchai |
| 18kW ~ 3000kW | Weichai |
| 8kW ~ 800kW | SDEC |
| 12kW ~ 320kW | FAWDE |
| 18kW ~ 1200kW | Yuchai |
| 11kW ~ 104kW | Beinei Aircooled |
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA |
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar |
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson |
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp |
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn |
| 6kW ~ 2000kW | Chinese Engines | Smartgen |
Advantages:
- High-quality components: The generator incorporates renowned brands, ensuring reliable and efficient performance.
- Robust construction: The generator is built to withstand demanding conditions, providing long-lasting durability.
- Fuel efficiency: The engine's advanced technology optimizes fuel consumption, resulting in cost savings over the long term.
- Minimal maintenance: With a maintenance-free battery and extended service intervals, the generator offers hassle-free operation and reduced maintenance costs.
- Comprehensive warranty and support: The product is backed by an 18-month or 1500-hour after-sales service, providing peace of mind and reliable support.
FAQ (Frequently Asked Questions):
Q: Can I use this generator for residential purposes?
A: Absolutely! The silent diesel generator is suitable for residential, commercial, and industrial use, offering a reliable power supply wherever needed.
Q: Can I customize the voltage and frequency of the generator?
A: Yes, the generator can be customized to meet various voltage and frequency requirements, ensuring compatibility with your specific electrical system.
Q: What are the available options for the engine and generator brands?
A: We offer a wide range of engine brands, including SDEC, Yuchai, Doosan, Shanghai Engine, VMAN, Wudong, Googol, CAT, Perkins, Deutz Cummins, and more. Similarly, you can choose from renowned generator brands such as Stamford, Leroy Somer, Meccalte, and Marathon.
