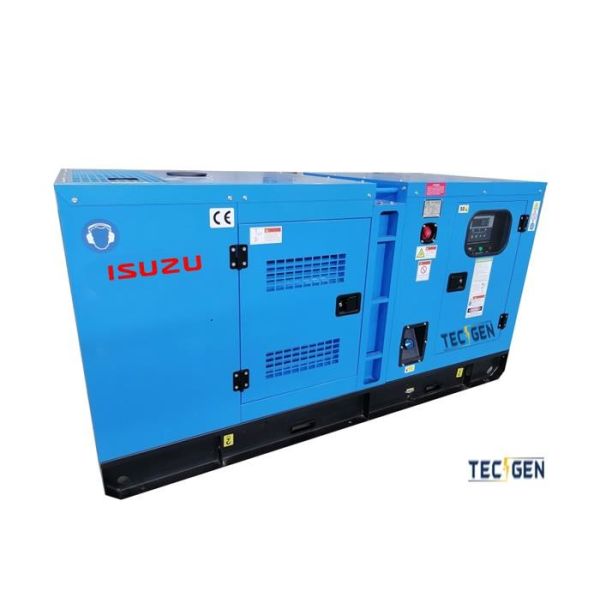

Silent Isuzu diesel generator 17kW isuzu diesel power generator for residential use
Standard Features:
- Power Output: 17kW/21kVA (Prime) and 19kW/23kVA (Standby)
- Engine Model: ISUZU JE493DB-04, 4-cylinder, naturally aspirated
- Generator Model: SOL2-M1
- Voltage: 230/400V (Customizable to various options)
- Frequency: 50Hz
- Speed: 1500rpm
- DEIF SGC-420 multifunctional controller
- Mechanical or electronic speed regulation
- Maintenance-free 24V lead-acid battery with battery rack
- Integrated fuel tank for 8 hours of continuous operation
- Corrosion-resistant design, suitable for coastal and humid environments
- Delixi or CHNT circuit breakers
- Industrial-grade silencer for noise reduction
- Forklift holes for easy transportation
- Optional configurations: Built-in ATS or wall-mounted ATS box
- Super silent operation
- 24-hour fuel tank
- Remote monitoring and start
- Oil-water separator
- Water jacket heater
- Output switch
- Parallel operation capability
- 3000-hour spare parts
- 18-month or 1500-hour after-sales service
- Optional engine brands: SDEC, Yuchai, Doosan, Shanghai Engine, VMAN, Wudong, Googol, CAT, Perkins, Deutz Cummins, and more
- Optional generator brands: Stamford, Leroy Somer, Meccalte, Marathon
- Available in open, silent, containerized silent, and trailer-mounted silent configurations
- Production capacity: 3000 units per year
17kW Isuzu Diesel Power Generator Specifications:
| 17kW ISUZU Diesel Power Generator Technical Datasheets |
| Genset model | TG23JIS |
| Genset Type | Silent |
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V |
| Frequency | 50Hz |
| Speed | 1500rpm |
| P.F(COS) | P.F. 0.8 |
| Prime Output Current | 29.6A |
| Prime Power | 17kW / 21kVA |
| Standby Power | 19kW / 23kVA |
| Engine | Brand | ISUZU |
| Model | JE493DB-04 |
| Alternator | Brand | Stamford |
| Model | SOL2-M1 |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Genset Weight | 630kgs |
| Genset Dimensions | L2080 * W 880 * 1100 |
| ISUZU Diesel Engine Data |
| Brand | Isuzu |
| Engine Model | JE493DB-04 |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4-troke |
| Aspiration | Natural Intake |
| Displacement | 2.585L |
| Compression ratio | 18.2L |
| Bore×Stroke | 93*102mm |
| Speed | 1500rpm |
| Prime Power | 21kW |
| Standby Power | 24kW |
| Speed Governor | MECH or Electrical |
| Cooling System | Forced water cooling cycle |
| Starting system | DC Motor |
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm |
| Stamford Alternator Data |
| Brand | Stamford |
| Model | SOL2-M1 |
| Frequency/speed | 50HZ/1500RPM |
| Rate Output | 22.9kVA |
| No. of Phase | 3 Phase, 4 Wire |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Working Condition | Below 1000m |
| Bearing | Single |
| Coupling | Direct |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| DEIF Controller System |
| Controller | Brand | DEIF |
| Model | SGC-420 |
| Function | Auto Mains (Utility) Failure |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS & RS485 Connection |
| CAN Functions |
| Diesel Generator Output ranges & Brand Options |
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type |
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent |
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay |
| 16kW ~ 600kW | Deutz | Marathon | DEIF |
| 7kW ~ 64kW | Yangdong | Tecgen |
| 7kW ~ 76kW | Quanchai |
| 18kW ~ 3000kW | Weichai |
| 8kW ~ 800kW | SDEC |
| 12kW ~ 320kW | FAWDE |
| 18kW ~ 1200kW | Yuchai |
| 11kW ~ 104kW | Beinei Aircooled |
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA |
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar |
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson |
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp |
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn |
| 6kW ~ 2000kW | Chinese Engines | Smartgen |
Advantages:
- High-quality components ensure reliable and efficient performance.
- Robust construction ensures durability and longevity.
- Fuel efficiency results in cost savings over time.
- Minimal maintenance requirements reduce operational hassle and costs.
- Comprehensive warranty and after-sales support provide peace of mind.
FAQ (Frequently Asked Questions):
Q: Can this generator be used for residential purposes?
A: Absolutely! The soundproof silent power generator is ideal for residential, commercial, and industrial applications, providing reliable power whenever needed.
Q: Can I choose the voltage and frequency that suits my requirements?
A: Yes, the generator can be customized to accommodate various voltage and frequency options, ensuring compatibility with your specific electrical system.
Q: Are there different options for engine and generator brands?
A: Yes, we offer a wide range of engine options, including SDEC, Yuchai, Doosan, Shanghai Engine, VMAN, Wudong, Googol, CAT, Perkins, Deutz Cummins, and more. Similarly, you can choose from renowned generator brands such as Stamford, Leroy Somer, Meccalte, and Marathon.
Q: Is the generator easy to install and operate?
A: Yes, the generator is designed for easy installation and operation. It comes with integrated features, including a control panel, battery, and fuel tank, simplifying the installation process.
Q: How long can the generator operate continuously?
A: The generator is equipped with an integrated fuel tank that allows up to 8 hours of continuous operation. Additionally, an optional 24-hour fuel tank is available for extended usage.
