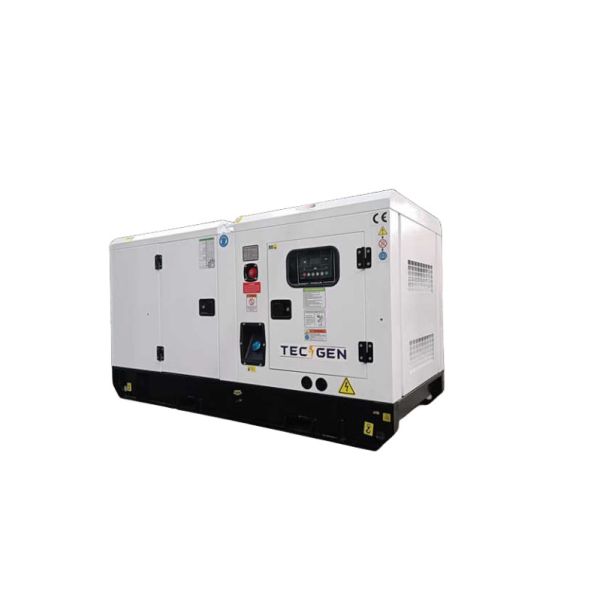

65KVA Perkins Diesel Generator 50HZ Genset Standby Power 72KVA 57KW
1) Engine: Perkins diesel engine, Water-cooled
2) Alternator: Stamford / Leroy Somer / Marathon / Tecgen Brushless Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires
4) Voltage Available :
50Hz: 380V 400V 415V
60Hz: 220V 380V 440V 480V
Other voltage is also available as client's request
Canopy
· All canopy designed with modular principles
· All metal canopy parts painted by electrostatic polyester power paint
· Soundproof design ensure that the noise level be controlled in small scope
· Convenient to lift and move
· Easy to maintenance and operate
Base Frame
· Base frame including position for forklift and crane
· Integral fuel tank
· Daily fuel tank continuously supply for 8-24 hours
· Fuel tank easy to maintain and clean
· Anti-vibration pads are flexed between engine and alternator.
Control System
Control, monitor and protect the Generator Set including:
· High water temperature
· Low oil pressure
· Over and under speed
· Over current
· Under/Over generator voltage
· Start and stop failure
· Low and high battery voltage
· Charge fail
· Emergency stop
PRODUCTS Datasheet:
| DIESEL GENERATOR SET |
| Genset Model | TG72P |
| Prime Power | 65KVA/52KW |
| Standby Power | 72KVA/57KW |
| Rated Voltage (V) | 400 |
| Rated Frequency (Hz) | 50 |
| Rated Speed (RPM) | 1500 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA |
| Engine Brand | Perkins |
| Engine Model | 1104A-44TG1 |
| Engine Prime Power(KW) | 58 |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Air intake way | Turbo |
| Governor | Mechanical |
| Bore*Stroke (mm*mm) | 105*127 |
| Displacement (Liter) | 4.4 |
| Compression Ratio | 17.25:1 |
| Cooling System | Water-Cooled |
| Starting Method | DC 24V Electrical Starting |
| Fuel Consumption (g/kw.h) | 208 |
| ALTERNATOR DATA |
| Alternator Brand | Stamford |
| Alternator Model | UCI224F |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Product Fetures:
1. Famous diesel engine -- Powered by Perkins
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, Tecgen.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
